General purpose rectifier featuring a 200V repetitive reverse voltage and 1A average rectified current. This axial lead component offers a fast recovery time of up to 200ns, with a maximum forward surge current of 30A. Operating across a wide temperature range from -65°C to 150°C, it is supplied in a DO-41 package and is RoHS compliant.
PackageDO-41
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi 1N4935RLG technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-41 |
| Current Rating | 1A |
| Forward Current | 1A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 30A |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 300ns |
| Reverse Recovery Time-Max | 200ns |
| Reverse Voltage | 200V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N4935RLG Datasheet
Download the complete datasheet for Onsemi 1N4935RLG to view detailed technical specifications.
No datasheet is available for this part.

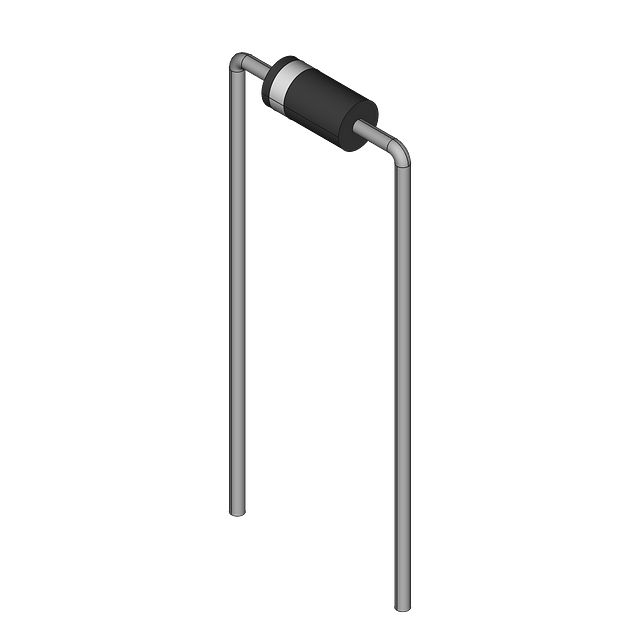

Product Images
