5.6V Zener diode with 5% voltage tolerance, rated for 500mW power dissipation. Features a DO-35 package, through-hole mounting, and tin matte contact plating. Operates across a wide temperature range from -65°C to 200°C. Supplied on tape and reel with 5000 units per package. RoHS compliant and lead-free.
PackageDO-35
Voltage Rating5.6V
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Onsemi 1N5232BTR technical specifications.
General
| Package/Case | DO-35 |
| Contact Plating | Tin, Matte |
| ESD Protection | No |
| Impedance | 11R |
| Lead Free | Lead Free |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 5.6V |
| Voltage Tolerance | 5% |
| Weight | 80g |
| Working Voltage | 5.6V |
| Zener Current | 20mA |
| Zener Voltage | 5.6V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N5232BTR Datasheet
Download the complete datasheet for Onsemi 1N5232BTR to view detailed technical specifications.
No datasheet is available for this part.

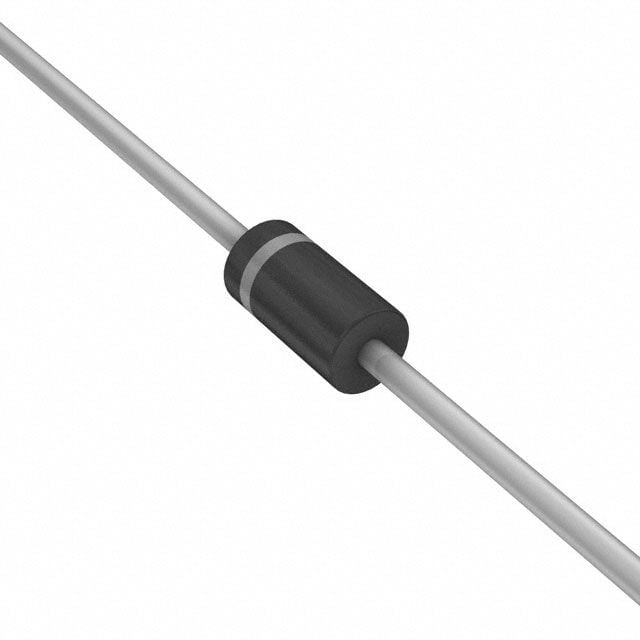

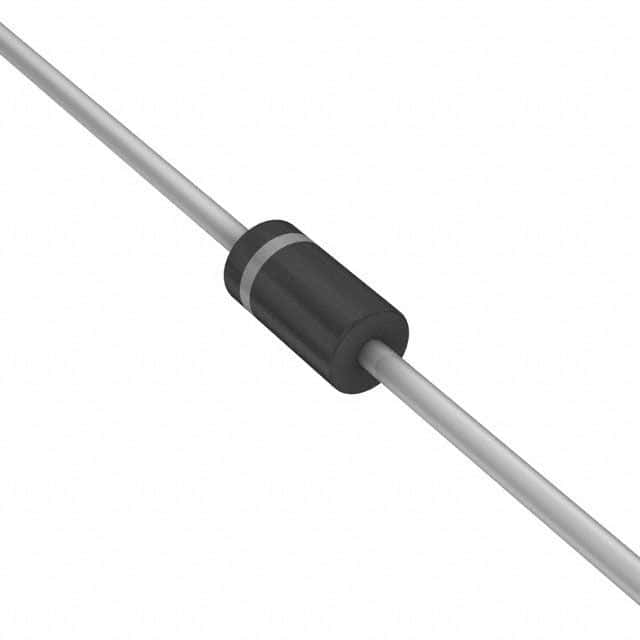

Product Images
