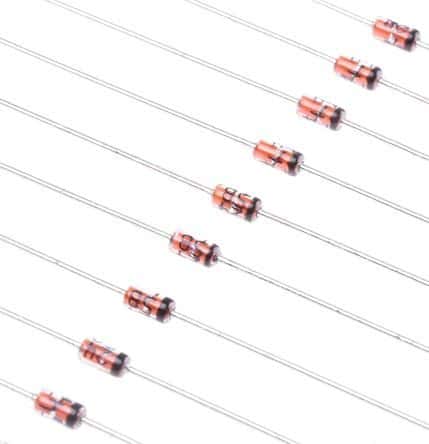

15V Zener diode with 500mW power dissipation and 5% voltage tolerance. Features a DO-35 package, through-hole mounting, and tin-matte contact plating. Operates across a wide temperature range of -65°C to 200°C. Supplied on tape and reel with a package quantity of 5000 units.
Sign in to ask questions about the Onsemi 1N5245BTR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi 1N5245BTR technical specifications.
| Package/Case | DO-35 |
| Contact Plating | Tin, Matte |
| Diameter | 1.91mm |
| ESD Protection | No |
| Impedance | 16R |
| Lead Free | Lead Free |
| Length | 4.56mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 15V |
| Voltage Tolerance | 5% |
| Weight | 80g |
| Working Voltage | 15V |
| Zener Current | 8.5mA |
| Zener Voltage | 15V |
| RoHS | Compliant |
