5W Zener Diode, 3.3V, 5% tolerance, featuring a 1.44A Zener current and 5W power dissipation. This axial leaded device operates within a temperature range of -65°C to 200°C and has a low impedance of 3R. Constructed with plastic material, it is RoHS compliant and halogen-free.
PackageAxial
Voltage Rating3.3V
Current Rating1.44A
Power5W
Quick Jump:
Technical Specifications
Onsemi 1N5333BRLG technical specifications.
General
| Package/Case | Axial |
| Current Rating | 1.44A |
| Diode Type | ZENER |
| Halogen Free | Halogen Free |
| Height | 3.68mm |
| Impedance | 3R |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Material | Plastic |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Current | 300uA |
| Max Reverse Leakage Current | 300uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 3.3V |
| Voltage Tolerance | 5% |
| Width | 3.68mm |
| Working Voltage | 3.3V |
| Zener Current | 1.44A |
| Zener Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N5333BRLG Datasheet
Download the complete datasheet for Onsemi 1N5333BRLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

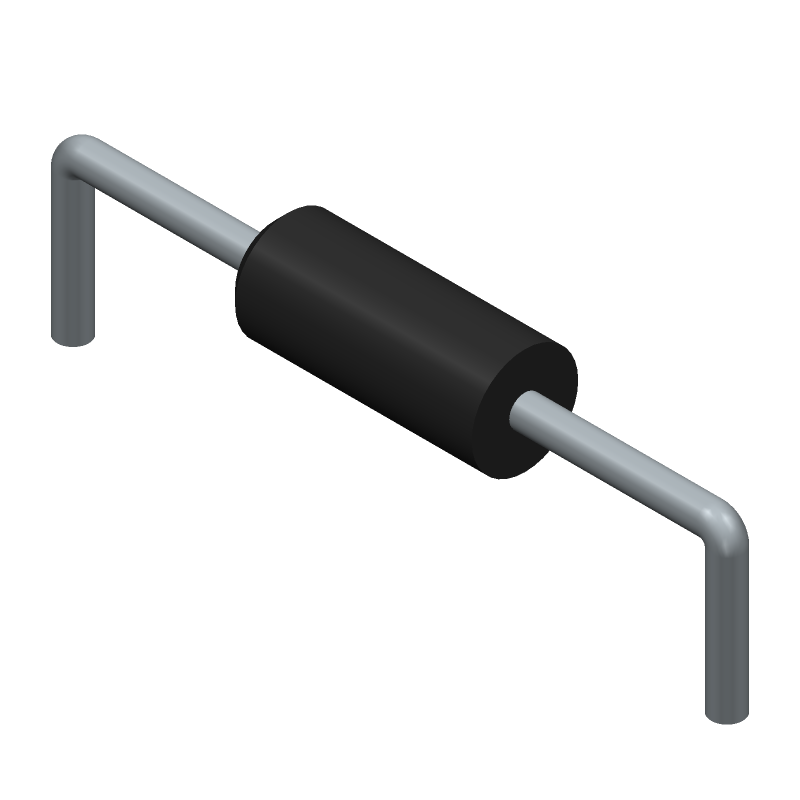

Product Images
