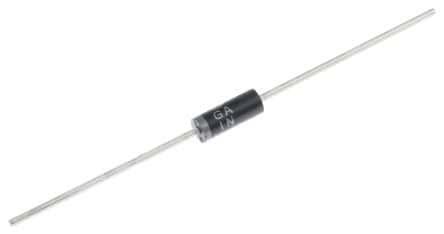

Axial lead Zener diode, 5W power dissipation, 11V working voltage with 5% tolerance. Features a Zener voltage of 11V and a Zener current of 430mA. Operates across a wide temperature range from -65°C to 200°C. Packaged in tape and reel with 4000 units per reel, this component is RoHS compliant and halogen-free.
PackageAxial
Voltage Rating11V
Power5W
Quick Jump:
Technical Specifications
Onsemi 1N5348BRLG technical specifications.
General
| Package/Case | Axial |
| Halogen Free | Halogen Free |
| Height | 3.68mm |
| Impedance | 2.5R |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Surmetic™ |
| Tolerance | 5% |
| DC Rated Voltage | 11V |
| Voltage Tolerance | 5% |
| Width | 3.68mm |
| Working Voltage | 11V |
| Zener Current | 430mA |
| Zener Voltage | 11V |
Compliance
| RoHS | Compliant |
