5W Zener Diode, 16V DC rated voltage with 5% tolerance. Features 2.5 Ohm impedance and 295mA Zener current. Operates from -65°C to 200°C, with a maximum reverse leakage current of 1uA. Packaged in an axial lead, plastic Surmetic 40 package, supplied on a 4000-piece tape and reel. RoHS compliant and halogen-free.
PackageAxial
Voltage Rating16V
Power5W
Quick Jump:
Technical Specifications
Onsemi 1N5353BRLG technical specifications.
General
| Package/Case | Axial |
| Diameter | 3.68mm |
| Diode Type | ZENER |
| Halogen Free | Halogen Free |
| Impedance | 2.5R |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Material | Plastic |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Current | 1uA |
| Max Reverse Leakage Current | 1uA |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 16V |
| Voltage Tolerance | 5% |
| Working Voltage | 16V |
| Zener Current | 295mA |
| Zener Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N5353BRLG Datasheet
Download the complete datasheet for Onsemi 1N5353BRLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

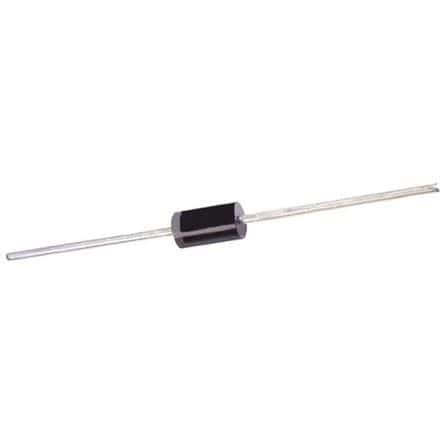

Product Images
