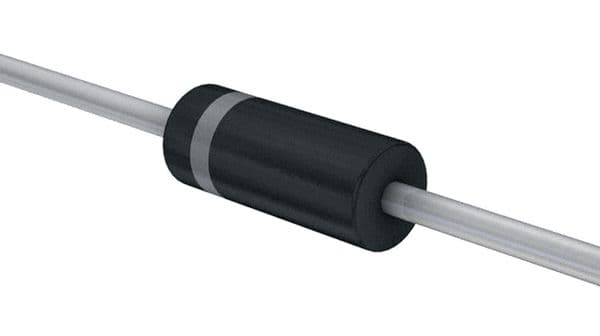

Single Zener Diode featuring a 24V DC rated voltage with 5% tolerance. This component offers a maximum power dissipation of 5W and a low impedance of 3.5 Ohms. It operates within a temperature range of -65°C to 200°C and has a maximum reverse leakage current of 500nA. The diode is packaged in an axial case with a diameter, height, and width of 3.68mm, and a length of 8.89mm. It is RoHS compliant and halogen-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 1N5359BG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Axial |
| Diameter | 3.68mm |
| Halogen Free | Halogen Free |
| Height | 3.68mm |
| Impedance | 3.5R |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Current | 500nA |
| Max Reverse Leakage Current | 500nA |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 24V |
| Voltage Tolerance | 5% |
| Width | 3.68mm |
| Working Voltage | 24V |
| Zener Current | 198mA |
| Zener Voltage | 24V |
| RoHS | Compliant |
