General purpose rectifier featuring 1kV reverse voltage and 3A average rectified current. DO-201AD axial lead package with 5.3mm diameter and 9.5mm length. Offers 200A peak non-repetitive surge current and operates from -65°C to 150°C. This component is RoHS and Halogen Free, supplied on a 1200-piece tape and reel.
PackageDO-201AD
Voltage Rating1kV
Current Rating3A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi 1N5408RLG technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | DO-201AD |
| Current Rating | 3A |
| Diameter | 5.3mm |
| Forward Current | 3A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 1kV |
| Max Surge Current | 200A |
| Output Current | 3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 200A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 1kV |
| RoHS Compliant | Yes |
| DC Rated Voltage | 1kV |
| Working Voltage | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N5408RLG Datasheet
Download the complete datasheet for Onsemi 1N5408RLG to view detailed technical specifications.
No datasheet is available for this part.

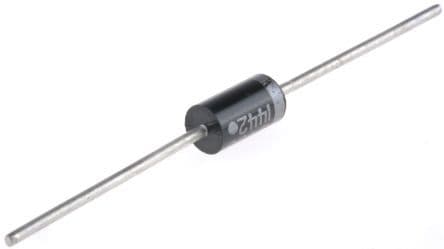

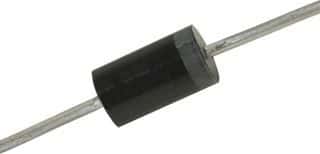

Product Images
