Bidirectional TVS Diode for surge suppression, featuring a 30V working voltage and 48.4V clamping voltage. This component offers 400W peak pulse power and 8.3A peak pulse current handling. With a low leakage current of 1uA and 1-channel bidirectional protection, it operates across a wide temperature range of -65°C to 150°C. The device is housed in a compact SMA package with tin, matte contact plating, and is RoHS and Halogen Free compliant.
PackageSMA
Capacitance210pF
Voltage Rating30V
PolarityBidirectional
Quick Jump:
Technical Specifications
Onsemi 1SMA30CAT3G technical specifications.
General
| Capacitance | 210pF |
| Package/Case | SMA |
| Clamping Voltage | 48.4V |
| Clamping Voltage-Max | 48.4V |
| Contact Plating | Tin, Matte |
| Depth | 2.6mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.32mm |
| Max Breakdown Voltage | 36.81V |
| Min Breakdown Voltage | 33.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 8.3A |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 30V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 8.3A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 33.3V |
| Reverse Standoff Voltage | 30V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| Width | 2.92mm |
| Working Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1SMA30CAT3G Datasheet
Download the complete datasheet for Onsemi 1SMA30CAT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

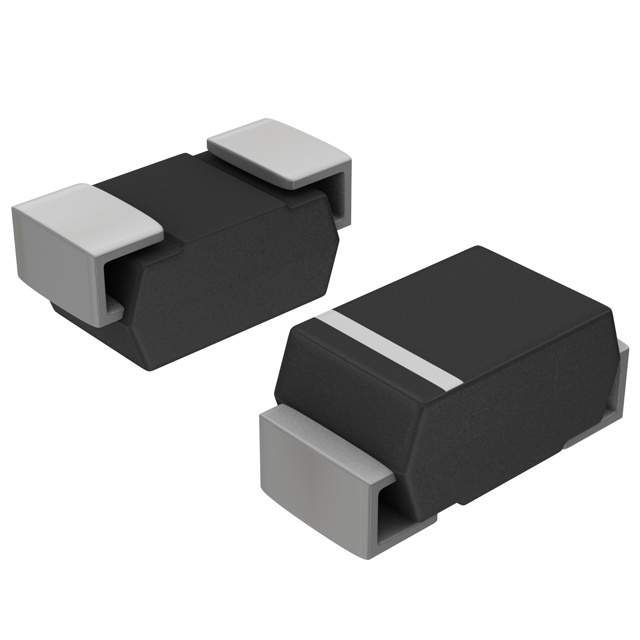

Product Images
