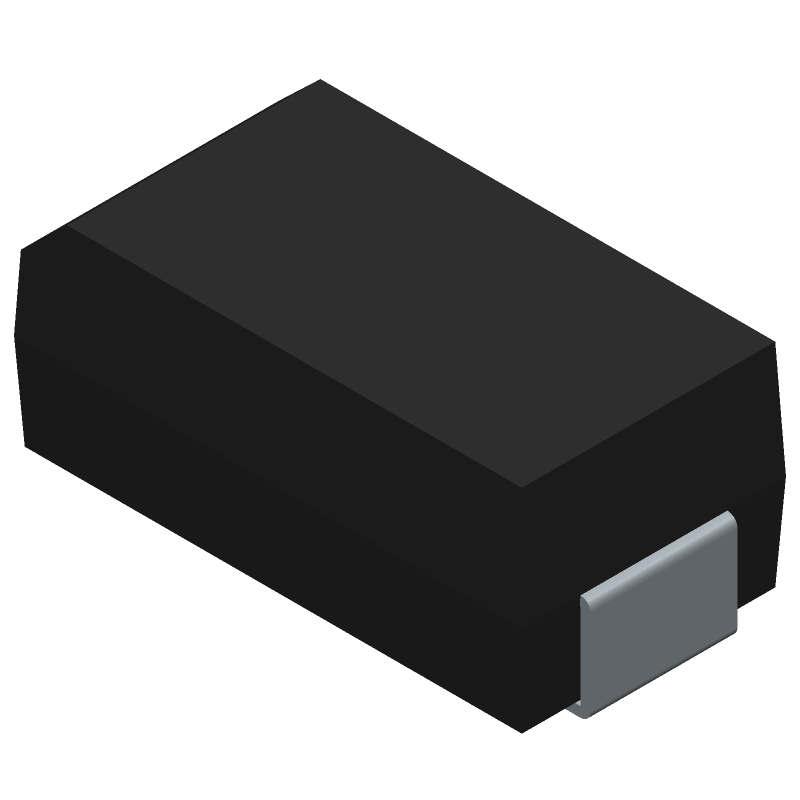

1.5W Zener Diode Voltage Regulator, featuring a 30V working voltage and 5% tolerance. This discrete semiconductor component offers ESD protection and operates within a temperature range of -65°C to 150°C. Packaged in a compact SMA case with tin, matte contact plating, it is supplied on a 5000-piece tape and reel. The diode boasts a maximum power dissipation of 1.5W and a maximum reverse leakage current of 500nA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 1SMA5936BT3G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMA |
| Contact Plating | Tin, Matte |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 2.05mm |
| Impedance | 26R |
| Lead Free | Lead Free |
| Length | 4.57mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1.5W |
| Max Reverse Current | 500nA |
| Max Reverse Leakage Current | 500nA |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 30V |
| Voltage Tolerance | 5% |
| Width | 2.92mm |
| Working Voltage | 30V |
| Zener Current | 50mA |
| Zener Voltage | 30V |
| RoHS | Compliant |
