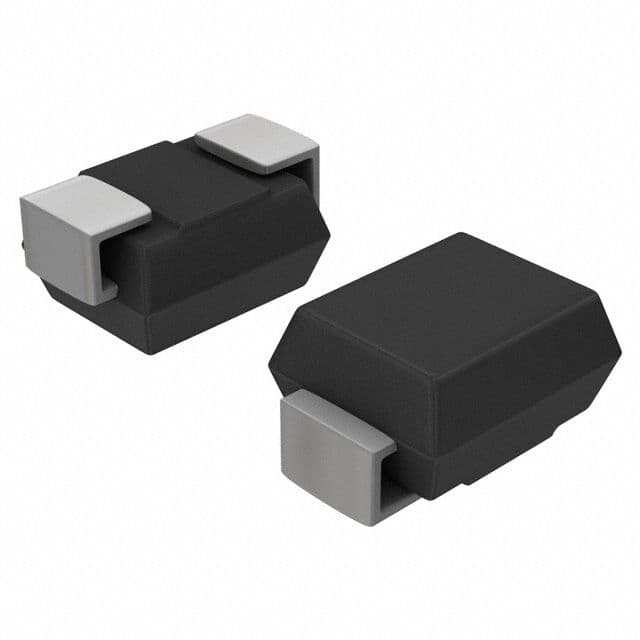

The 1SMB5918BT3 is a Zener diode with a DC rated voltage of 5.1V and a tolerance of 5%. It has a maximum reverse leakage current of 5uA and a maximum power dissipation of 3W. The diode is packaged in an SMB case and is available in quantities of 2500. It is rated for operation between -65°C and 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 1SMB5918BT3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMB |
| Impedance | 4R |
| Lead Free | Contains Lead |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 3W |
| Max Reverse Leakage Current | 5uA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 550mW |
| RoHS Compliant | No |
| Tolerance | 5% |
| DC Rated Voltage | 5.1V |
| Voltage Tolerance | 5% |
| Zener Current | 294mA |
| Zener Voltage | 5.1V |
| RoHS | Not Compliant |
