62V Zener Diode Voltage Regulator, 3W power dissipation, featuring a 5% voltage tolerance. SMB package with tin, matte contact plating, offering ESD protection. Operates within a -65°C to 150°C temperature range, with a maximum reverse leakage current of 1µA. Halogen-free and RoHS compliant.
PackageSMB
Voltage Rating62V
Power550mW
Quick Jump:
Technical Specifications
Onsemi 1SMB5944BT3G technical specifications.
General
Package/Case
SMB
Contact Plating
Tin, Matte
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.09inch
Impedance
100R
Lead Free
Lead Free
Length
0.181inch
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
3W
Max Reverse Current
1uA
Max Reverse Leakage Current
1uA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
550mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
5%
DC Rated Voltage
62V
Voltage Tolerance
5%
Width
0.156inch
Working Voltage
62V
Zener Current
24mA
Zener Voltage
62V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1SMB5944BT3G Datasheet
Download the complete datasheet for Onsemi 1SMB5944BT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

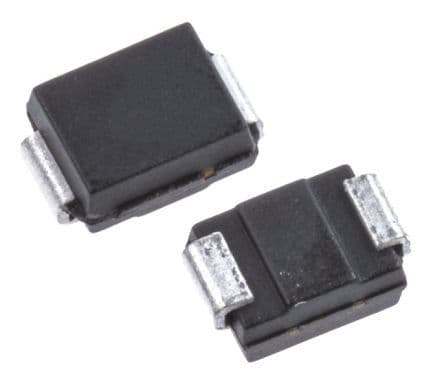

Product Images
