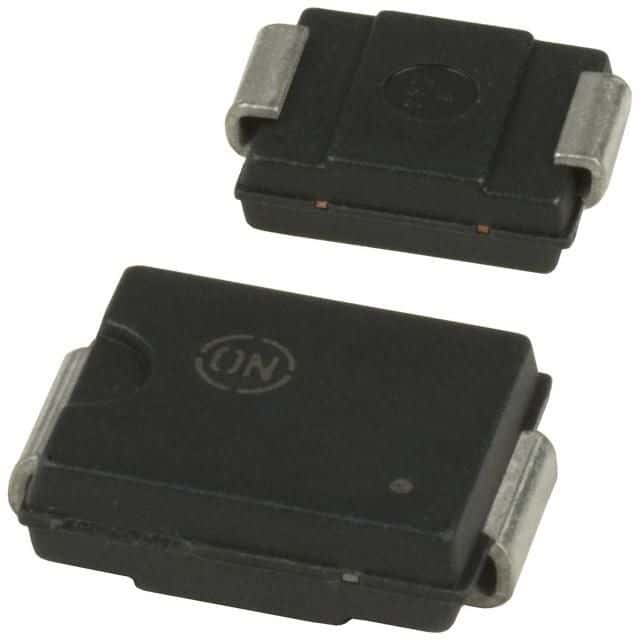

Unidirectional TVS diode in SMC package, offering 22V reverse standoff voltage and 35.5V clamping voltage. Features 1.5kW peak pulse power, 42.2A peak pulse current, and 24.4V minimum breakdown voltage. Designed for ESD protection with a maximum reverse leakage current of 5uA. Operates across a wide temperature range from -65°C to 150°C, meeting halogen-free and lead-free standards.
PackageSMC
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1SMC22AT3G technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 35.5V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 2.41mm |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Min Breakdown Voltage | 24.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 42.2A |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 22V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 42.2A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 22V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1SMC22AT3G Datasheet
Download the complete datasheet for Onsemi 1SMC22AT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
