Bidirectional TVS diode with 1.5kW peak pulse power dissipation and 143A peak pulse current. Features a 5.8V reverse standoff voltage, 6.45V minimum breakdown voltage, and 10.5V clamping voltage. This through-hole component, packaged in DO-201AE with tin matte plating, operates from -55°C to 175°C and offers 400uA maximum reverse leakage current.
PackageDO-201AE
MountingThrough Hole
PolarityBidirectional
Power5W
Quick Jump:
Technical Specifications
Onsemi 1V5KE6V8CA technical specifications.
General
Body Diameter
5.33mm
Package/Case
DO-201AE
Clamping Voltage
10.5V
Contact Plating
Tin, Matte
Diameter
5.33mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
No
Lead Free
Lead Free
Leakage Current
400uA
Max Breakdown Voltage
7.14V
Min Breakdown Voltage
6.45V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
400uA
Max Surge Current
143A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
5.8V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
143A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
5W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.45V
Reverse Standoff Voltage
5.8V
RoHS Compliant
Yes
Termination
Axial
DC Rated Voltage
6.8V
Weight
0.36g
Compliance
RoHS
Compliant
Datasheet
Onsemi 1V5KE6V8CA Datasheet
Download the complete datasheet for Onsemi 1V5KE6V8CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

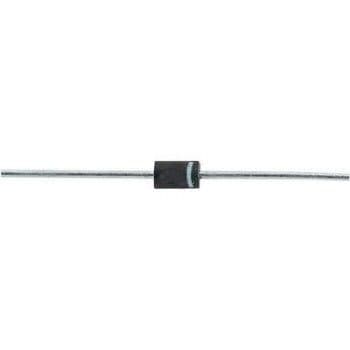

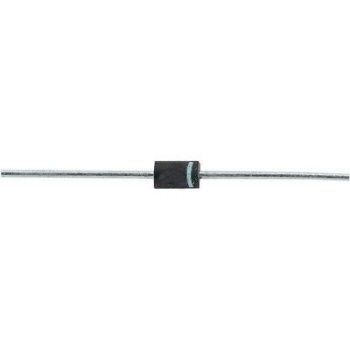

Product Images
