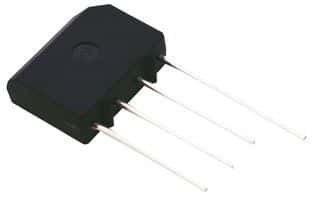

General purpose bridge rectifier for single-phase applications, featuring an 800V repetitive reverse voltage rating and a 2A forward current. This SIP package component offers a maximum power dissipation of 4.7W and a surge current capability of 60A. Operating across a wide temperature range from -55°C to 150°C, it includes a low reverse leakage current of 5uA and a capacitance of 25pF. Designed for through-hole mounting, this RoHS compliant component is suitable for various electronic circuits.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 2KBP08M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 25pF |
| Package/Case | SIP |
| Current | 2A |
| Current Rating | 2A |
| Forward Current | 2A |
| Height | 12.7mm |
| Lead Free | Lead Free |
| Length | 15.24mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 4.7W |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 60A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Output Current | 2A |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 60A |
| Power Dissipation | 4.7W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 2KBP08M |
| Termination | Through Hole |
| Voltage | 800V |
| DC Rated Voltage | 800V |
| Weight | 0.053546oz |
| Width | 5.08mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi 2KBP08M to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Onsemi 2KBP08M
Product discontinuance notice from Fairchild Semiconductor for the 2KBP08M bridge rectifier, effective immediately with no suggested replacement.
