The 2N3442 is a TO-204-3 packaged NPN bipolar junction transistor with a collector-emitter breakdown voltage of 140V and a collector-emitter saturation voltage of 5V. It can handle a maximum collector current of 10A and has a gain bandwidth product of 80MHz. The transistor operates over a temperature range of -65°C to 200°C and has a maximum power dissipation of 117W. It is not RoHS compliant but is SVHC compliant.
PackageTO-204-3
PolarityNPN
Power117W
Quick Jump:
Technical Specifications
Onsemi 2N3442 technical specifications.
General
| Package/Case | TO-204-3 |
| Collector Base Voltage (VCBO) | 160V |
| Collector Emitter Breakdown Voltage | 140V |
| Collector Emitter Saturation Voltage | 5V |
| Collector-emitter Voltage-Max | 5V |
| Emitter Base Voltage (VEBO) | 7V |
| Gain Bandwidth Product | 80MHz |
| hFE Min | 20 |
| Max Collector Current | 10A |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 117W |
| Package Quantity | 100 |
| Packaging | Tray |
| Polarity | NPN |
| Power Dissipation | 117W |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | No |
| Transition Frequency | 80MHz |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi 2N3442 Datasheet
Download the complete datasheet for Onsemi 2N3442 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

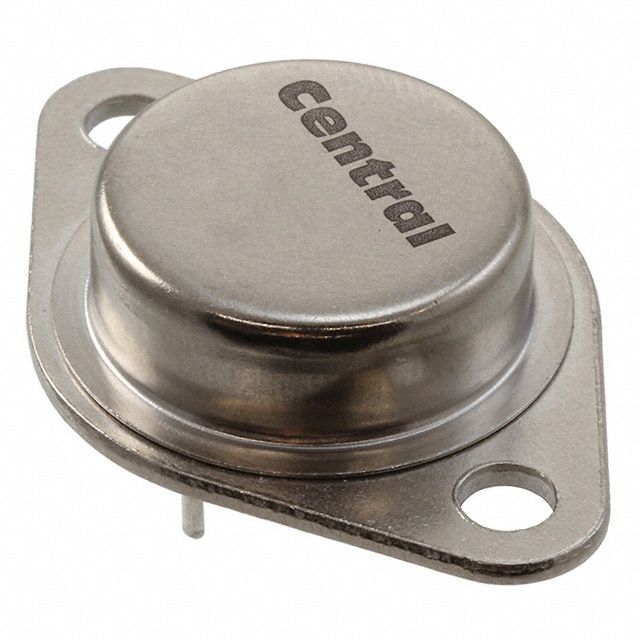

Product Images
