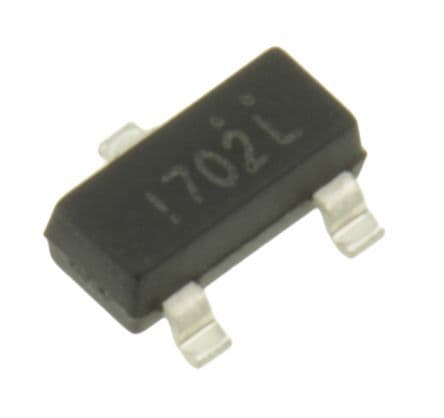

N-Channel Enhancement Mode Field Effect Transistor, SOT-23 package, offering a 60V drain-source voltage and 115mA continuous drain current. Features a low 7.5 Ohm maximum drain-source on-resistance and a 2.1V threshold voltage. Operates across a wide temperature range from -55°C to 150°C with 200mW maximum power dissipation. This surface mount transistor is RoHS compliant and available on a 3000-piece tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 2N7002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi 2N7002 technical specifications.
| Package/Case | SOT-23 |
| Continuous Drain Current (ID) | 115mA |
| Current | 115mA |
| Current Rating | 115mA |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 7.5R |
| Dual Supply Voltage | 60V |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.93mm |
| Input Capacitance | 50pF |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Nominal Vgs | 2.1V |
| Number of Channels | 1 |
| On-State Resistance | 5.3R |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 7.5R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.1V |
| Turn-Off Delay Time | 20ns |
| Turn-On Delay Time | 20ns |
| Voltage | 60V |
| DC Rated Voltage | 60V |
| Width | 1.3mm |
| RoHS | Compliant |
