Technical Specifications
Onsemi 2N7002ET3G technical specifications.
General
| Package/Case | SOT-23-3 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 260mA |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 2.5R |
| Drain to Source Voltage (Vdss) | 60V |
| Element Configuration | Single |
| Fall Time | 1.2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 26.7pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 300mW |
| Rds On Max | 2.5R |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 4.8ns |
| Turn-On Delay Time | 1.7ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 2N7002ET3G Datasheet
Download the complete datasheet for Onsemi 2N7002ET3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

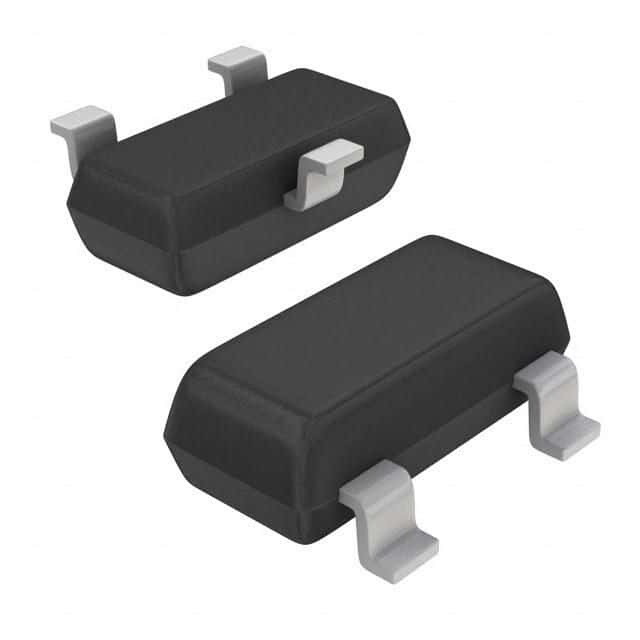

Product Images
