The 74ABT16245CSSCX is an 8-bit dual inverting transceiver with 3-STATE output. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 4.5V and 5.5V. The device is packaged in a lead-free SSOP package and is mounted on the surface. It is RoHS compliant and available in quantities of 1000 units per reel.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74ABT16245CSSCX technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | 64mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Type | 3-STATE |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3.9ns |
| RoHS Compliant | Yes |
| Series | 74ABT |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74ABT16245CSSCX Datasheet
Download the complete datasheet for Onsemi 74ABT16245CSSCX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

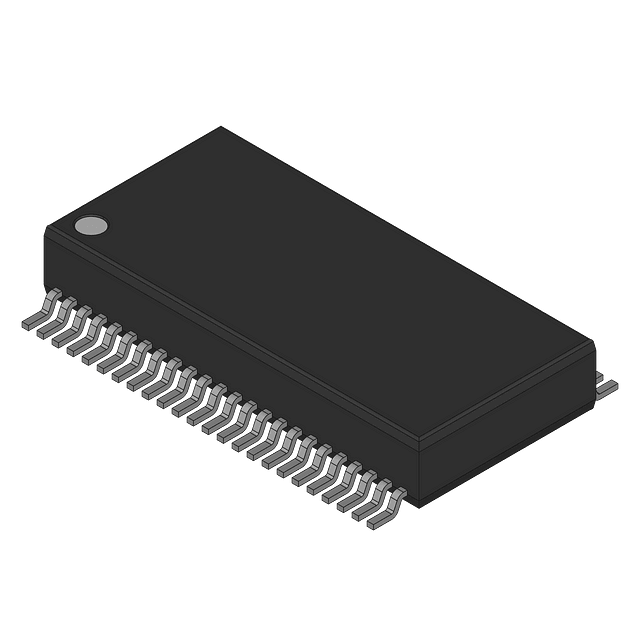

Product Images
