74LVX4245QSCX

8-Bit Dual Supply Translating Transceiver, 3-STATE, QSOP

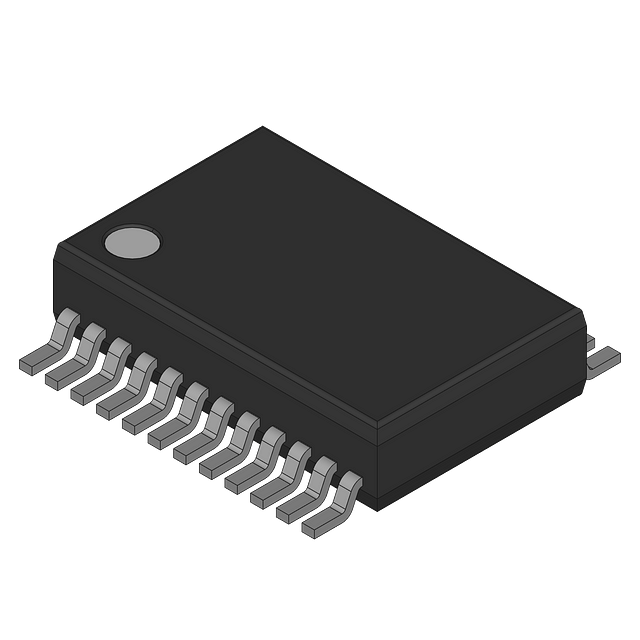

8-Bit Dual Supply Translating Transceiver with 3-STATE Outputs. This CMOS logic IC features bidirectional, non-inverting translation with 8 channels. It operates from a 2.7V to 5.5V supply voltage range, offering 24mA output current. The transceiver supports 3-STATE, push-pull outputs and is housed in a QSOP package for surface mounting.

PackageQSOP

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Onsemi 74LVX4245QSCX technical specifications.

General

Package/Case	QSOP
Contact Plating	Tin, Matte
Direction	Bidirectional
High Level Output Current	-24mA
Lead Free	Lead Free
Logic Function	Transceiver, Inverting, Translator
Low Level Output Current	24mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of Bits	8
Number of Bits per Element	8
Number of Channels	8
Number of Circuits	2
Number of Elements	1
Number of Functions	8
Number of Inputs	8
Output Current	24mA
Output Type	3-STATE, PUSH-PULL
Package Quantity	1
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	11.5ns
Quiescent Current	8uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	74LVX
Supply Voltage-Nom	5.5V
Technology	CMOS
Turn-On Delay Time	11.5ns
Weight	0.2556g
