16-bit, 3-state CMOS bus driver featuring 4 elements with 4 bits per element. This surface mount buffer offers non-inverting logic with a maximum operating temperature of 85°C and a minimum of -40°C. Operating across a supply voltage range of 1.2V to 3.6V, it provides 24mA low-level output current and -24mA high-level output current. The component boasts a 2.5ns propagation delay and is lead-free and RoHS compliant.
PackageBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74VCX16244G technical specifications.
General
| Package/Case | BGA |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 4 |
| Number of Channels | 16 |
| Number of Elements | 4 |
| Number of Input Lines | 16 |
| Number of Inputs | 16 |
| Number of Output Lines | 16 |
| Number of Outputs | 16 |
| Output Type | 3-STATE |
| Package Quantity | 1092 |
| Packaging | Tray |
| Polarity | Non-Inverting |
| Propagation Delay | 2.5ns |
| Quiescent Current | 20uA |
| RoHS Compliant | Yes |
| Series | 74VCX |
| Technology | CMOS |
| Turn-On Delay Time | 41ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74VCX16244G Datasheet
Download the complete datasheet for Onsemi 74VCX16244G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

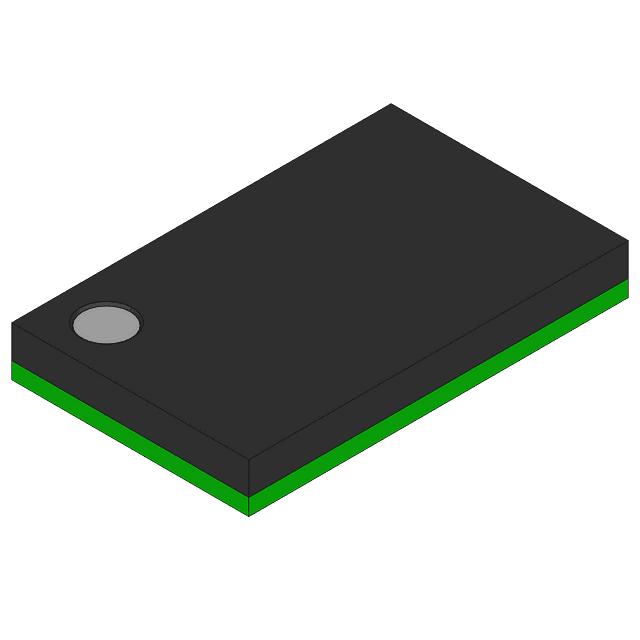

Product Images
