Technical Specifications
Onsemi A5191HRTNG-XTD technical specifications.
General
| Package/Case | QFN |
| Data Rate | 1.2Kbps |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 465.4kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Package Quantity | 490 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Supply Current | 330uA |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi A5191HRTNG-XTD Datasheet
Download the complete datasheet for Onsemi A5191HRTNG-XTD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

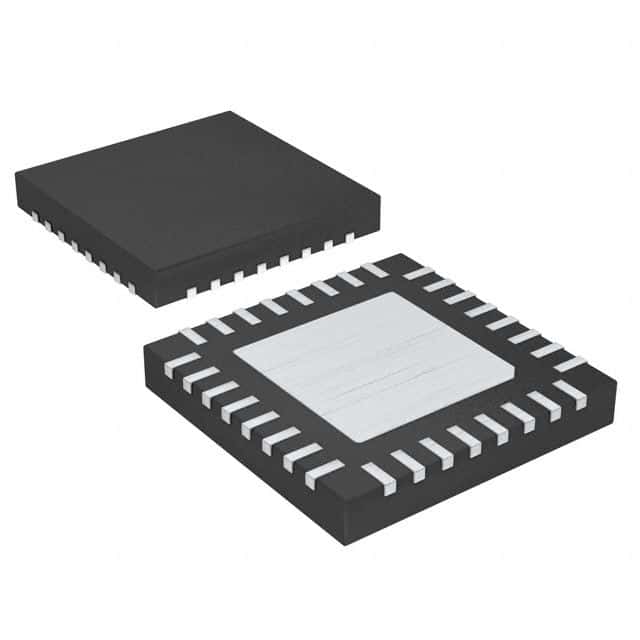

Product Images
