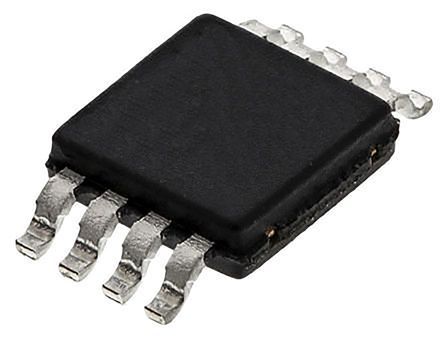

The ADM1032ARMZ-REEL is a digital fan controller with I2C and SMBus interfaces. It operates from a 3.3V supply voltage and is available in a halogen-free, lead-free MSOP-8 package. The device is suitable for surface mount applications and has a maximum operating temperature of 120°C. It is RoHS compliant and does not contain radiation hardening features.
Checking distributor stock and pricing after the page loads.
| Package/Case | MSOP |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Output Type | Digital |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 7b |
| RoHS Compliant | Yes |
| Width | 3.1mm |
| RoHS | Compliant |
These are design resources that include the Onsemi ADM1032ARMZ-REEL
Onsemi notice regarding the discontinuance of specific electronic components in 3Q09, including last buy dates (March 31, 2010) and last ship dates (September 30, 2010).
