The AMIS-49200-XTP is a 1-channel transceiver with a data rate of 31.25Kbps. It is packaged in a 10 x 10 mm LQFP-44 package and is RoHS compliant. The device operates over a temperature range of -40°C to 85°C and has a maximum supply current of 800uA. It is suitable for use in telecom applications and is available in quantities of 1500 per reel.
PackageLQFP
Current800uA
Quick Jump:
Technical Specifications
Onsemi AMIS-49200-XTP technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 31.25Kbps |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 800uA |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 800uA |
| Type | Integrated Circuit (IC) |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi AMIS-49200-XTP Datasheet
Download the complete datasheet for Onsemi AMIS-49200-XTP to view detailed technical specifications.
No datasheet is available for this part.

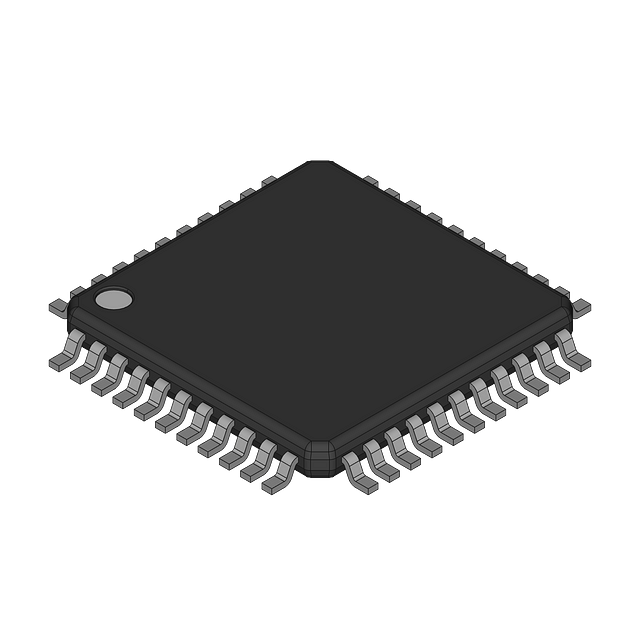

Product Images
