Onsemi
AMIS30521C5212RG
Stepper Motor Driver with Comprehensive Diagnostic Feedback and SLA Output, NQFP32, 7x7, 2500-REEL
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi AMIS30521C5212RG technical specifications.
General
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1.6A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi AMIS30521C5212RG Datasheet
Download the complete datasheet for Onsemi AMIS30521C5212RG to view detailed technical specifications.
No datasheet is available for this part.

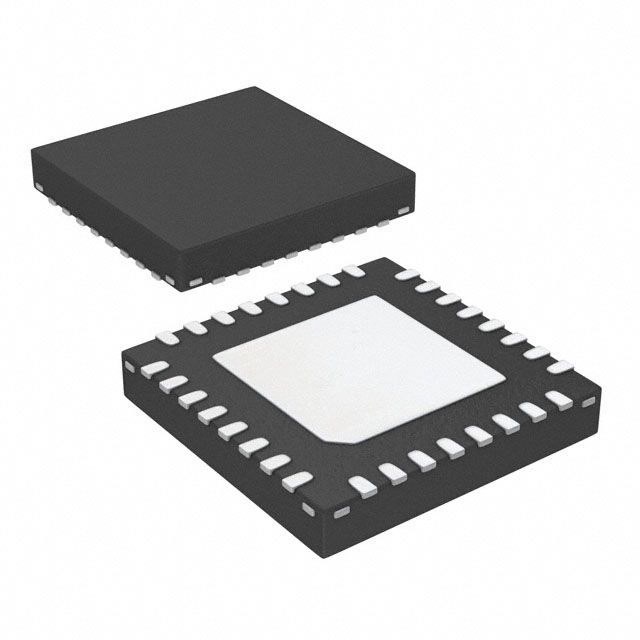

Product Images
