General purpose rectifier diode featuring a 200mA forward current and 250V repetitive reverse voltage. This single element diode offers low leakage with a maximum reverse current of 40nA. Housed in a compact SOD-323-2 package with tin matte contact plating, it operates across a wide temperature range from -55°C to 150°C. The component is RoHS compliant and supplied on a 3000-piece tape and reel.
PackageSOD-323-2
Power200mW
Quick Jump:
Technical Specifications
Onsemi BAS21AHT1G technical specifications.
General
| Average Rectified Current | 200mA |
| Package/Case | SOD-323-2 |
| Contact Plating | Tin, Matte |
| Element Configuration | Single |
| Forward Current | 200mA |
| Halogen Free | Halogen Free |
| Height | 0.039inch |
| Lead Free | Lead Free |
| Length | 0.07inch |
| Max Forward Surge Current (Ifsm) | 625mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 250V |
| Max Reverse Current | 40nA |
| Max Reverse Leakage Current | 40nA |
| Max Reverse Voltage (DC) | 250V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 50ns |
| Reverse Recovery Time-Max | 50ns |
| RoHS Compliant | Yes |
| Width | 0.053inch |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BAS21AHT1G Datasheet
Download the complete datasheet for Onsemi BAS21AHT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

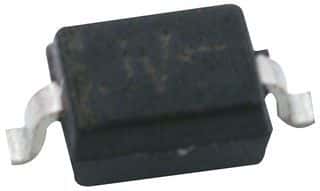

Product Images
