Ultra-fast switching diode with 70V reverse voltage and 200mA average rectified current. Features 1.5pF capacitance and 6ns reverse recovery time. Packaged in a SOT-23 surface mount case with tin, matte contact plating. Operates from -55°C to 150°C with 350mW power dissipation. RoHS compliant and lead-free.
PackageSOT-23
Capacitance1.5pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi BAV99 technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 1.5pF |
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Height | 0.93mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 2.5uA |
| Max Reverse Voltage (DC) | 70V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Power Dissipation | 350mW |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 6ns |
| Reverse Voltage | 70V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 70V |
| Weight | 0.025g |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BAV99 Datasheet
Download the complete datasheet for Onsemi BAV99 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

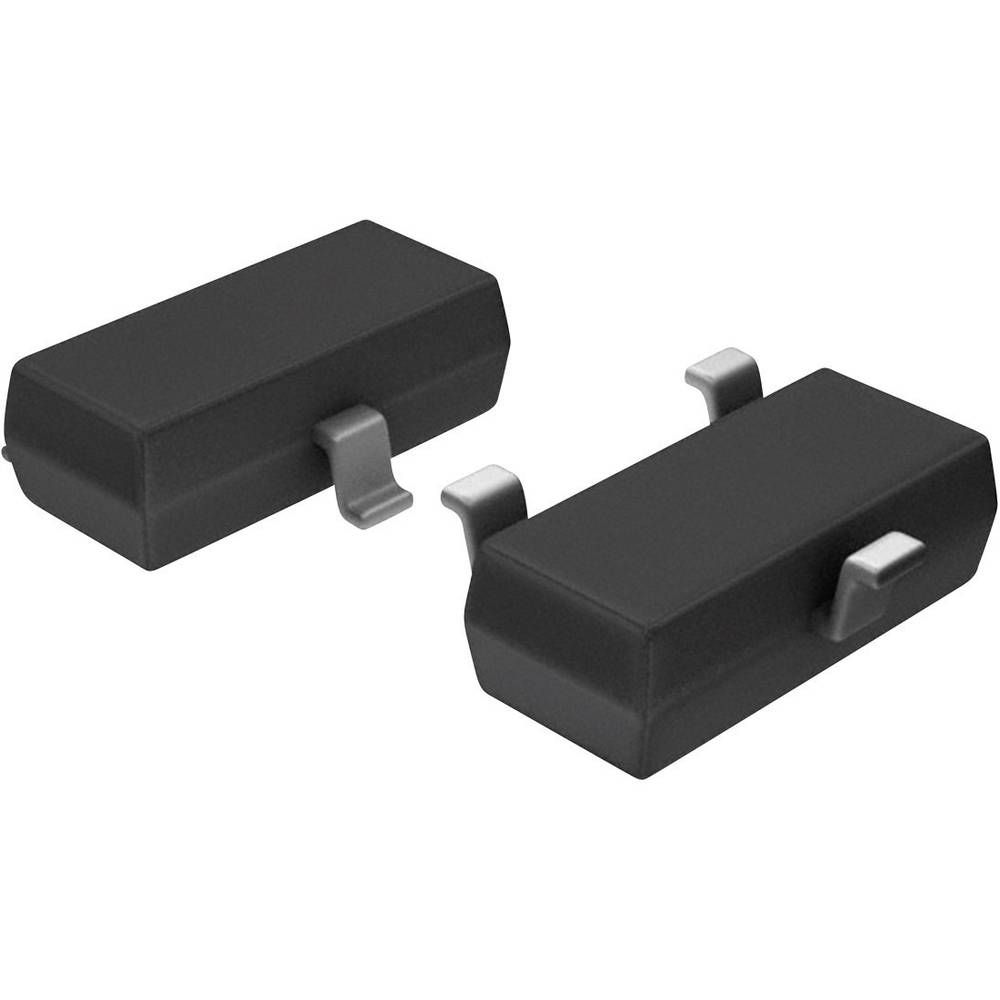

Product Images
