NPN silicon bipolar junction transistor (BJT) in a TO-92-3 package, designed for through-hole mounting. Features a maximum collector current of 100mA and a collector-emitter breakdown voltage of 65V. Offers a minimum DC current gain (hFE) of 110 and a transition frequency of 300MHz. Operates within a temperature range of -65°C to 150°C, with a maximum power dissipation of 500mW. Packaged in an ammo pack, this lead-free and RoHS-compliant component is ideal for various electronic applications.
Frequency300MHz
PackageTO-92-3
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi BC546CTA technical specifications.
General
Package/Case
TO-92-3
Collector Base Voltage (VCBO)
80V
Collector Emitter Breakdown Voltage
65V
Collector Emitter Saturation Voltage
250mV
Collector Emitter Voltage (VCEO)
65V
Collector-emitter Voltage-Max
600mV
Contact Plating
Tin, Matte
Current Rating
100mA
Emitter Base Voltage (VEBO)
6V
Frequency
300MHz
Gain Bandwidth Product
300MHz
Height
4.58mm
hFE Min
110
Lead Free
Lead Free
Length
4.58mm
Max Breakdown Voltage
65V
Max Collector Current
100mA
Max Frequency
300MHz
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Mount
Through Hole
Number of Elements
1
Package Quantity
2000
Packaging
Ammo Pack
Polarity
NPN
Power Dissipation
500mW
Radiation Hardening
No
RoHS Compliant
Yes
Transition Frequency
300MHz
DC Rated Voltage
65V
Weight
0.24g
Width
3.86mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BC546CTA Datasheet
Download the complete datasheet for Onsemi BC546CTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

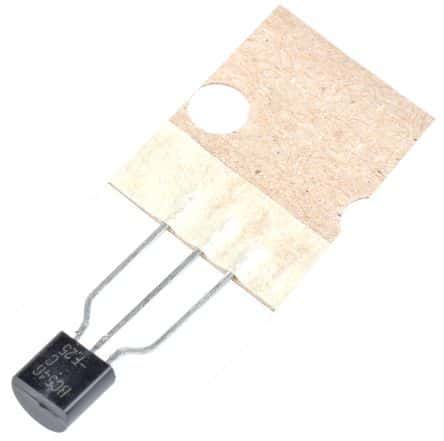

Product Images
