NPN bipolar junction transistor (BJT) for general-purpose applications. Features a 45V collector-emitter breakdown voltage and a 100mA maximum collector current. Offers a minimum DC current gain (hFE) of 200 and a transition frequency of 100MHz. Housed in a 6-pin SC-88 (SOT-363-6) surface-mount package with tin, matte plating. Operates within a temperature range of -55°C to 150°C and has a maximum power dissipation of 380mW. This RoHS compliant component is supplied on tape and reel.
Frequency100MHz
PackageSOT-363-6
Current Rating100mA
PolarityNPN
Quick Jump:
Technical Specifications
Onsemi BC847BDW1T1G technical specifications.
General
Package/Case
SOT-363-6
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Saturation Voltage
600mV
Collector Emitter Voltage (VCEO)
45V
Collector-emitter Voltage-Max
600mV
Contact Plating
Tin, Matte
Current Rating
100mA
Emitter Base Voltage (VEBO)
6V
Frequency
100MHz
Gain Bandwidth Product
100MHz
Halogen Free
Halogen Free
Height
0.9mm
hFE Min
200
Lead Free
Lead Free
Length
2mm
Max Breakdown Voltage
45V
Max Collector Current
100mA
Max Frequency
100MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
380mW
Number of Elements
2
Package Quantity
3000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
380mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Transition Frequency
100MHz
DC Rated Voltage
45V
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BC847BDW1T1G Datasheet
Download the complete datasheet for Onsemi BC847BDW1T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

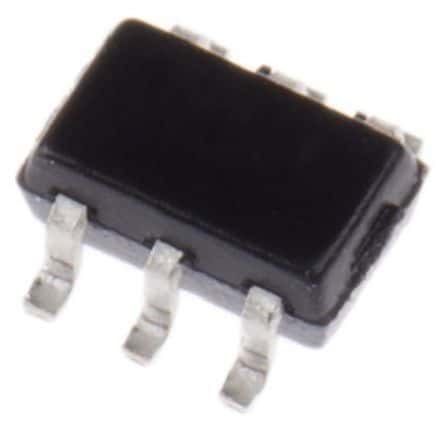

Product Images
