The BC849CLT1 is a small outline transistor with a maximum collector current of 100mA and a maximum power dissipation of 300mW. It has a collector-emitter breakdown voltage of 30V and a collector-emitter saturation voltage of 600mV. The transistor is packaged in a SOT-23-3 package and is rated for operation between -55°C and 150°C. It is not RoHS compliant and contains lead.
PackageSOT-23-3
Current Rating100mA
PolarityNPN
Quick Jump:
Technical Specifications
Onsemi BC849CLT1 technical specifications.
General
| Package/Case | SOT-23-3 |
| Collector Base Voltage (VCBO) | 30V |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector-emitter Voltage-Max | 600mV |
| Current Rating | 100mA |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 420 |
| Lead Free | Contains Lead |
| Max Collector Current | 15nA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| RoHS Compliant | No |
| Transition Frequency | 100MHz |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi BC849CLT1 Datasheet
Download the complete datasheet for Onsemi BC849CLT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

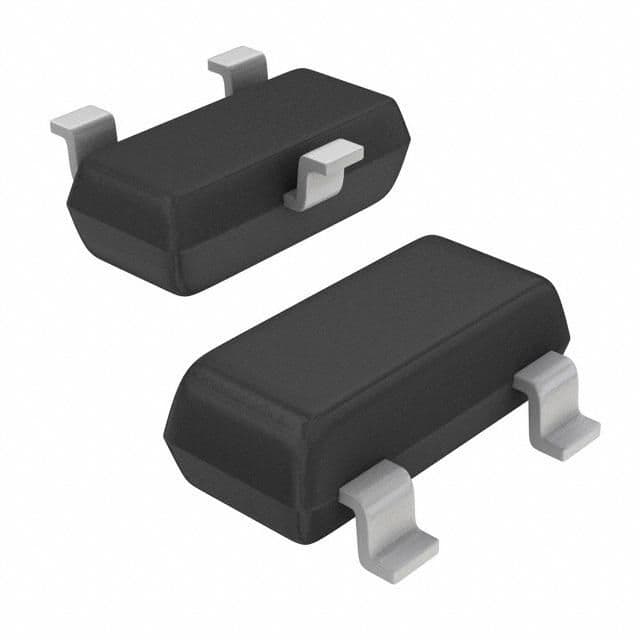

Product Images
