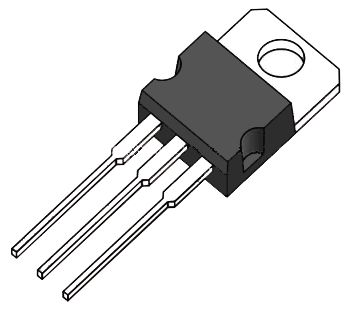

PNP bipolar junction transistor (BJT) in a TO-220-3 package. Features a 100V collector-emitter breakdown voltage and a maximum collector current of 8A. Offers a minimum DC current gain (hFE) of 750 and a maximum power dissipation of 65W. Operates within a temperature range of -65°C to 150°C. RoHS compliant with tin-matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi BDX54CG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-3 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 2V |
| Contact Plating | Tin, Matte |
| Current Rating | -8A |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 15.75mm |
| hFE Min | 750 |
| Lead Free | Lead Free |
| Length | 10.53mm |
| Max Collector Current | 8A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 65W |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| Power Dissipation | 65W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | -100V |
| Weight | 0.211644oz |
| Width | 4.83mm |
| RoHS | Compliant |
