NPN Bipolar Junction Power Transistor, TO-220AB package, featuring a 15A continuous collector current and 400V VCEO. This component offers a 700V VCBO and 700V collector emitter breakdown voltage, with a low 500mV VCE(sat). Operating at a maximum frequency of 23MHz, it provides a minimum hFE of 4 and a maximum power dissipation of 150W. Designed for through-hole mounting, this RoHS compliant transistor is supplied in a 50-piece rail/tube.
Frequency23MHz
PackageTO-220AB
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi BUH150G technical specifications.
General
| Package/Case | TO-220AB |
| Collector Base Voltage (VCBO) | 700V |
| Collector Emitter Breakdown Voltage | 700V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 400V |
| Collector-emitter Voltage-Max | 5V |
| Current Rating | 15A |
| Emitter Base Voltage (VEBO) | 10V |
| Frequency | 23MHz |
| Gain Bandwidth Product | 23MHz |
| Height | 9.28mm |
| hFE Min | 4 |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Max Collector Current | 15A |
| Max Frequency | 23MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 150W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 150W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SWITCHMODE™ |
| Transition Frequency | 23MHz |
| DC Rated Voltage | 700V |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BUH150G Datasheet
Download the complete datasheet for Onsemi BUH150G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

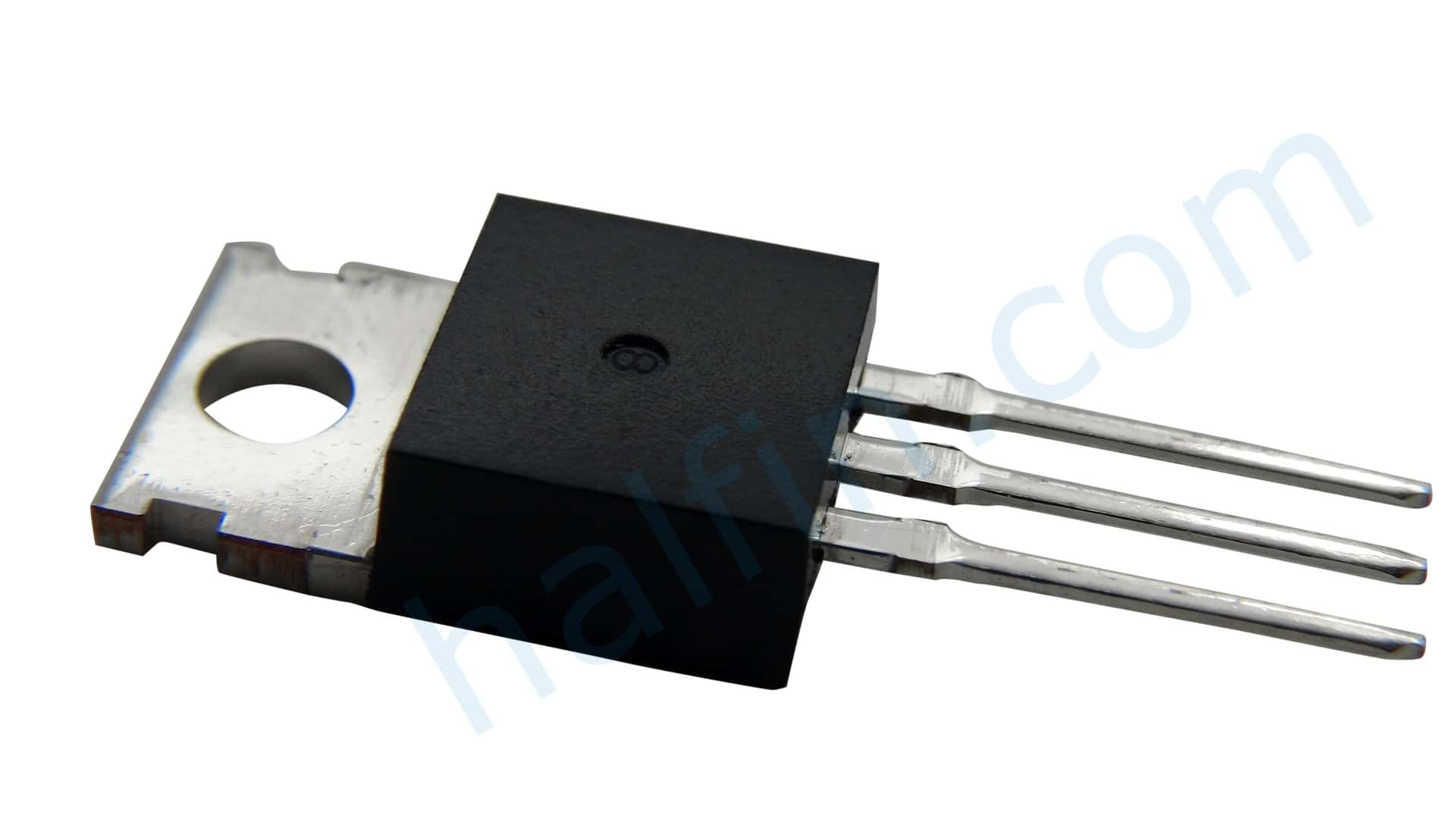

Product Images
