Technical Specifications
Onsemi BZX84C6V2LT1G technical specifications.
General
| Package/Case | SOT-23-3 |
| Height | 0.94mm |
| Impedance | 10R |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 225mW |
| Max Reverse Current | 3uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 6% |
| DC Rated Voltage | 6.2V |
| Voltage Tolerance | 6% |
| Weight | 0.001058oz |
| Width | 1.3mm |
| Zener Current | 10mA |
| Zener Voltage | 6.2V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BZX84C6V2LT1G Datasheet
Download the complete datasheet for Onsemi BZX84C6V2LT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

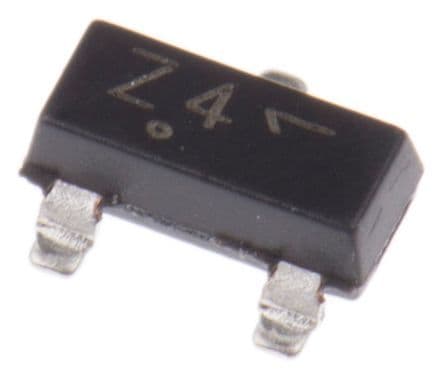

Product Images
