2Kb Serial EEPROM with I2C interface, organized as 256x8. Features a 2-wire serial interface supporting up to 400kHz operation. Offers a minimum operating voltage of 1.7V and a maximum of 5.5V, with a typical operating voltage of 5V. Packaged in a 5-lead TSOT with gold contact plating, suitable for surface mounting. Includes write protection and operates within a temperature range of -40°C to 85°C.
Frequency400kHz
PackageTSOT
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT24AA02TDI-GT3 technical specifications.
General
| Access Time | 3500ns |
| Access Time-Max | 900ns |
| Package/Case | TSOT |
| Contact Plating | Gold |
| Density | 2Kb |
| Frequency | 400kHz |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 256X8 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT24AA02TDI-GT3 Datasheet
Download the complete datasheet for Onsemi CAT24AA02TDI-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

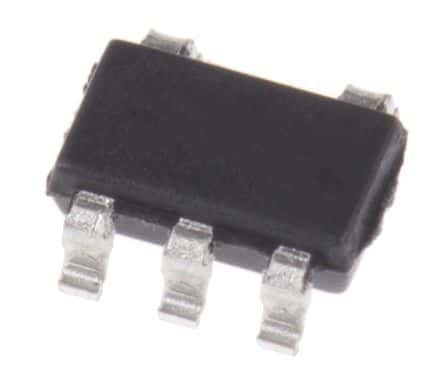

Product Images
