8Kb Serial EEPROM memory, organized as 1K x 8, featuring an I2C 2-wire interface with a maximum frequency of 400kHz. This surface mount component offers a fast access time of 900ns and operates across a supply voltage range of 1.7V to 5.5V. It is housed in a TSSOP package with gold contact plating, is RoHS and Halogen Free compliant, and supports write protection.
Frequency400kHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi CAT24C08YI-GT3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi CAT24C08YI-GT3 technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Density | 8Kb |
| Frequency | 400kHz |
| Halogen Free | Halogen Free |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 1KX8 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Voltage-Nom | 5.5V |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT24C08YI-GT3 Datasheet
Download the complete datasheet for Onsemi CAT24C08YI-GT3 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

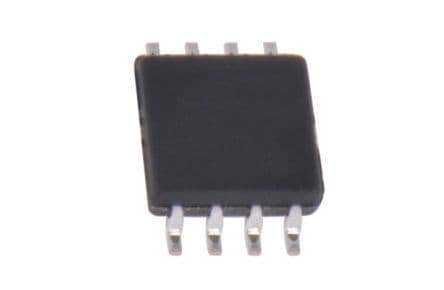

Product Images
