32Kb I2C/2-Wire Serial EEPROM, 4KX8 organization, offering 4096 words of non-volatile memory. Features a 900ns access time and supports up to 400kHz max frequency. Operates from 1.7V to 5.5V with a typical 5V supply voltage and 2mA supply current. Packaged in a halogen-free, RoHS-compliant TDFN-8 (MO-229) surface mount package with gold contact plating. Suitable for operation between -40°C and 85°C.
Frequency100kHz
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT24C32VP2I-GT3 technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Contact Plating | Gold |
| Density | 32Kb |
| Frequency | 100kHz |
| Halogen Free | Halogen Free |
| Height | 0.75mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32Kb |
| Memory Type | EEPROM, , Non-Volatile |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Words | 4096 |
| Operating Supply Voltage | 5V |
| Organization | 4KX8 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Width | 2.1mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT24C32VP2I-GT3 Datasheet
Download the complete datasheet for Onsemi CAT24C32VP2I-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

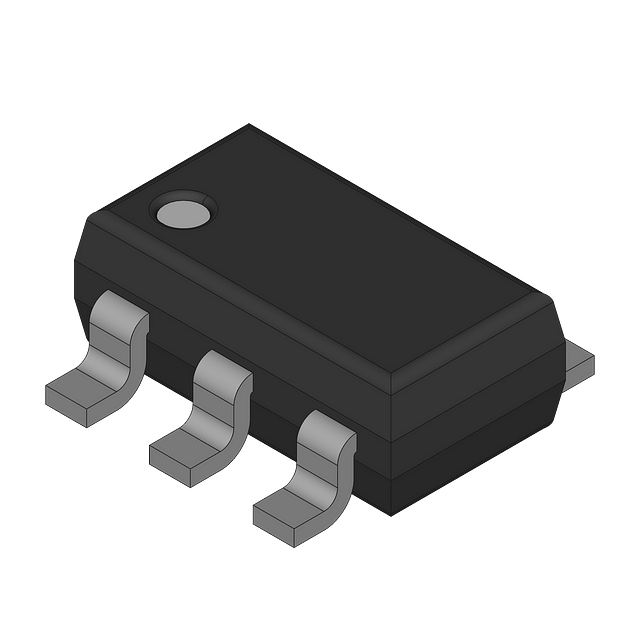

Product Images
