512Kb Serial EEPROM memory IC with I2C interface. Features 64K x 8 organization, 1MHz maximum frequency, and 3500ns access time. Operates from 1.8V to 5.5V supply voltage, with a nominal 5V. Packaged in a 3.1mm x 4.5mm x 1.05mm TSSOP with gold contact plating, suitable for surface mounting. RoHS and lead-free compliant, with write protection capabilities.
Frequency1MHz
PackageTSSOP
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT24C512YI-GT3 technical specifications.
General
| Access Time | 3500ns |
| Access Time-Max | 900ns |
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Density | 512Kb |
| Frequency | 1MHz |
| Halogen Free | Halogen Free |
| Height | 1.05mm |
| Interface | Serial, I2C, 2-Wire |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 512Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Words | 64000 |
| Operating Supply Voltage | 5V |
| Organization | 64KX8 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Supply Voltage-Nom | 5.5V |
| Width | 4.5mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT24C512YI-GT3 Datasheet
Download the complete datasheet for Onsemi CAT24C512YI-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

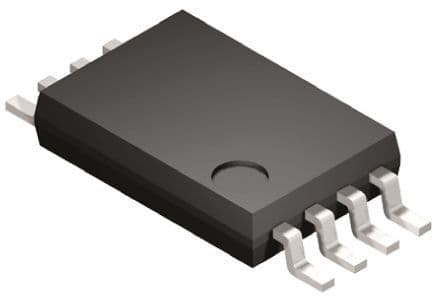

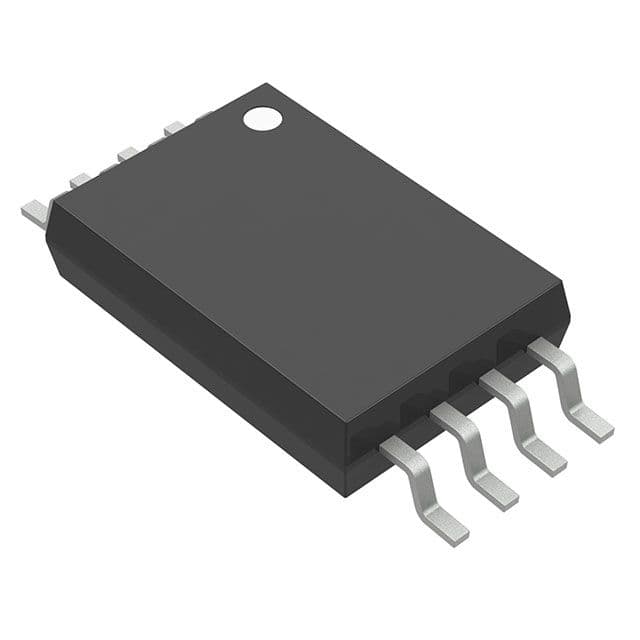

Product Images
