1Mb Serial EEPROM memory, 128K x 8 organization, featuring I2C and 2-wire serial interface. Operates with a supply voltage range of 1.8V to 5.5V, supporting a maximum frequency of 400kHz. Surface mount UDFN8 package (3x2mm, 0.5mm height) with gold contact plating. Includes write protection and is RoHS and Halogen Free compliant.
Frequency1MHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT24M01HU5I-GT3 technical specifications.
General
| Access Time | 400ns |
| Access Time-Max | 3.5us |
| Contact Plating | Gold |
| Density | 1Mb |
| Frequency | 1MHz |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Mb |
| Memory Type | EEPROM, , Non-Volatile |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Words | 131072 |
| Organization | 128KX8 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT24M01HU5I-GT3 Datasheet
Download the complete datasheet for Onsemi CAT24M01HU5I-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

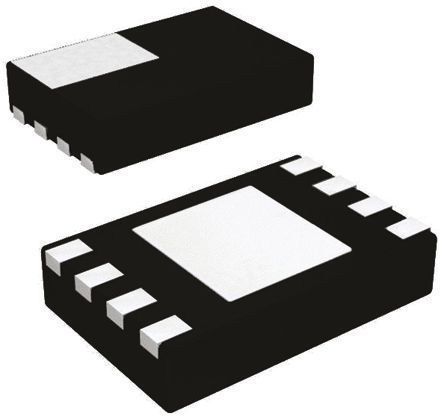

Product Images
