32-position, 50kR linear digital potentiometer with a 2-wire serial interface. Features a volatile memory type and single supply operation from 2.7V to 5.5V, with a maximum supply current of 25uA. Packaged in a compact SOT-23-6 (MO-178) with gold contact plating. Operating temperature range is -40°C to 85°C. Halogen-free and RoHS compliant.
PackageSOT-23-6
Current25uA
Resistance50kR
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi CAT5124TBI-50-GT3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi CAT5124TBI-50-GT3 technical specifications.
General
| Package/Case | SOT-23-6 |
| Contact Plating | Gold |
| Halogen Free | Halogen Free |
| Height | 0.87mm |
| Interface | Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Max Supply Current | 25uA |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Positions | 32 |
| Number of Taps | 32 |
| Operating Supply Current | 25uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 50kR |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Series | MiniPot™ |
| Supply Current | 25uA |
| Supply Type | Single |
| Taper | Linear |
| Weight | 0.00127oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT5124TBI-50-GT3 Datasheet
Download the complete datasheet for Onsemi CAT5124TBI-50-GT3 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

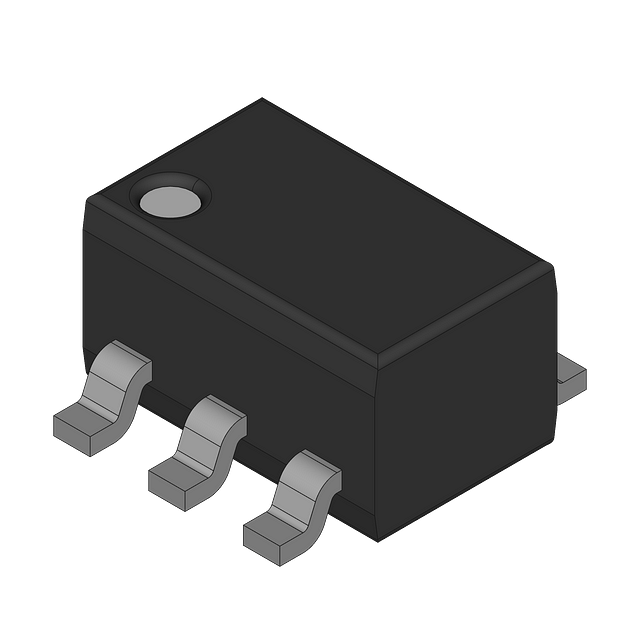

Product Images
