256-tap digital potentiometer with 50 kΩ resistance, featuring SPI and I2C serial interfaces. This single-circuit IC operates from a 2.7V to 5.5V supply voltage with a low 2µA maximum supply current. Packaged in a halogen-free, lead-free SOT-23-8, it offers a wide operating temperature range of -40°C to 85°C. Volatile memory type and 20% tolerance are standard.
PackageSOT-23-8
Current300nA
Resistance50kR
Quick Jump:
Technical Specifications
Onsemi CAT5172TBI-50GT3 technical specifications.
General
| Package/Case | SOT-23-8 |
| Contact Plating | Gold |
| Halogen Free | Halogen Free |
| Interface | I2C, SPI, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Current | 2uA |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Resistance | 50kR |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Series | CAT5172 |
| Supply Current | 300nA |
| Tolerance | 20% |
| Type | Potentiometer |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT5172TBI-50GT3 Datasheet
Download the complete datasheet for Onsemi CAT5172TBI-50GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

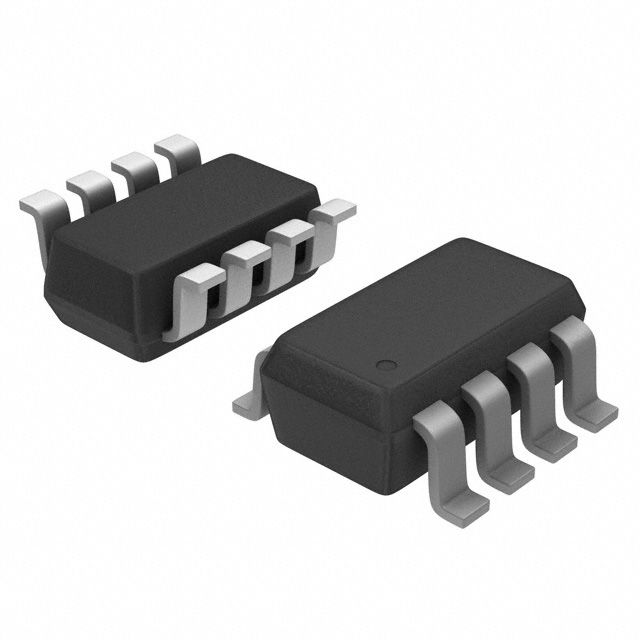

Product Images
