Surface mount supervisory circuit with a 2.93V threshold voltage, featuring active low, push-pull output. This integrated circuit monitors a single voltage with reset timeout of 140ms, operating from 1.2V to 5.5V supply voltage. It offers a maximum power dissipation of 320mW and a low operating supply current of 6µA. Packaged in a 4-pin SOT-143, this RoHS and lead-free component is suitable for applications requiring precise voltage supervision.
PackageSOT-143
Current15uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Onsemi CAT811STBI-GT3 technical specifications.
General
Package/Case
SOT-143
Halogen Free
Halogen Free
Height
1.07mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
2.96V
Min Reset Threshold Voltage
2.89V
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
6uA
Output
TOTEM-POLE
Overvoltage Threshold
2.96V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
320mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
15uA
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.08V
Watchdog Timer
No
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi CAT811STBI-GT3 Datasheet
Download the complete datasheet for Onsemi CAT811STBI-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

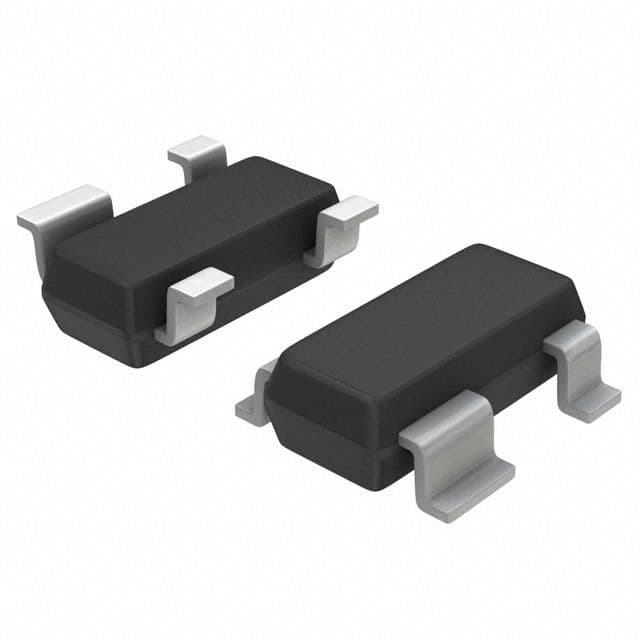

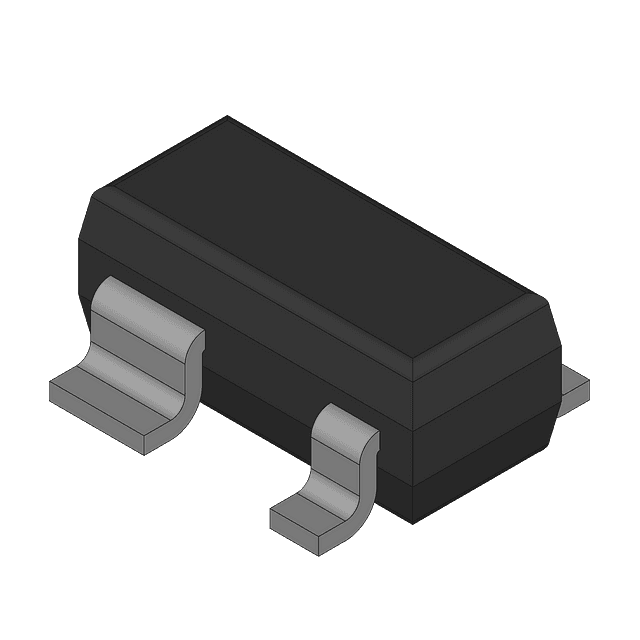

Product Images
