Technical Specifications
Onsemi CAT8801YSD-GT3 technical specifications.
General
Package/Case
SC
Halogen Free
Halogen Free
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
175mW
Max Reset Threshold Voltage
2.216V
Min Reset Threshold Voltage
2.164V
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Voltages Monitored
1
Output
TOTEM-POLE
Packaging
Tape and Reel
Power Dissipation
175mW
Radiation Hardening
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Threshold Voltage
2.19V
Type
Simple Reset/Power-On Reset, Power Supply Monitor
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Onsemi CAT8801YSD-GT3 Datasheet
Download the complete datasheet for Onsemi CAT8801YSD-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

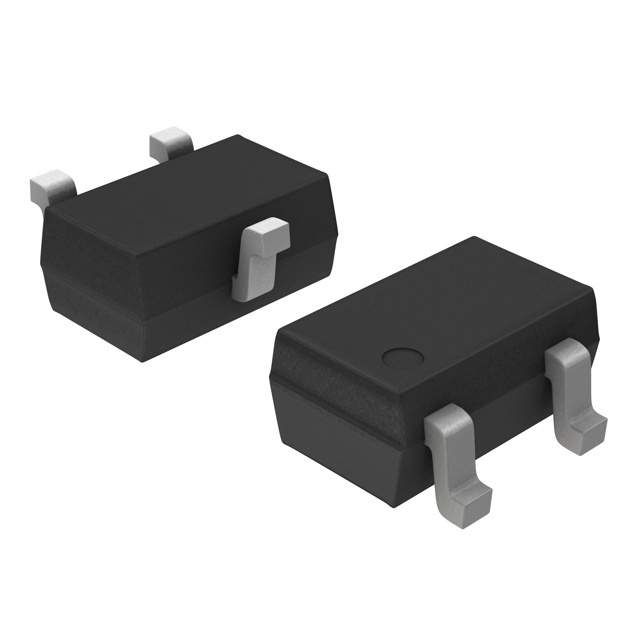

Product Images
