16Kb serial EEPROM memory with MICROWIRE interface, organized as 256 x 8. Features a maximum access time of 1000ns and a maximum operating frequency of 500kHz. Operates from 1.8V to 5.5V supply voltage, with a nominal 5V. Packaged in a through-hole PDIP-8 (300 mils) with gold contact plating. This non-volatile memory component is RoHS compliant and halogen-free.
Frequency3MHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi CAT93C86LI-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi CAT93C86LI-G technical specifications.
General
| Access Time-Max | 1000ns |
| Package/Case | PDIP |
| Contact Plating | Gold |
| Density | 16Kb |
| Frequency | 3MHz |
| Halogen Free | Halogen Free |
| Height | 4.95mm |
| Interface | MICROWIRE, Serial |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Frequency | 500kHz |
| Max Operating Temperature | 85°C |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Number of Words | 2000 |
| Operating Supply Voltage | 5V |
| Organization | 256 x 8 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 5.5V |
| Width | 7.11mm |
| Write Cycle Time-Max (tWC) | 1ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT93C86LI-G Datasheet
Download the complete datasheet for Onsemi CAT93C86LI-G to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

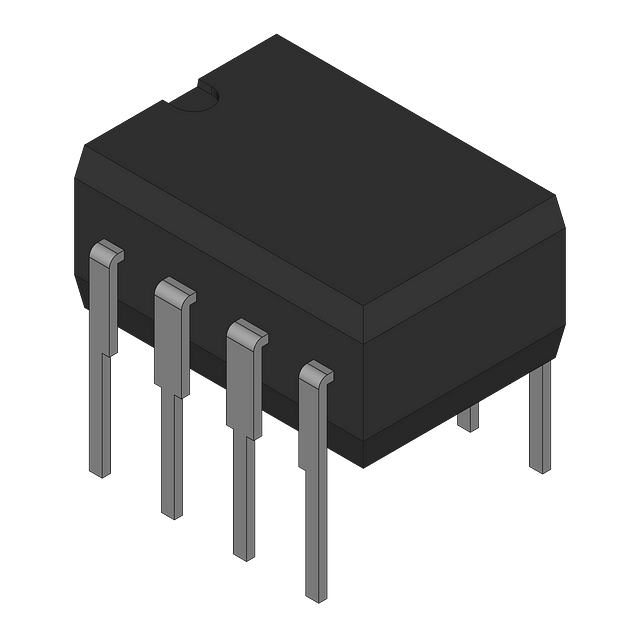

Product Images
