6-bit D-type flip-flop latch IC, CMOS technology, operating from 3V to 15V supply. Features positive edge clock triggering, 12MHz frequency, and 90ns propagation delay. Single-ended inputs and outputs, with ±4.2mA output current capability. Through-hole mounting in a PDIP package, with a wide operating temperature range of -55°C to 125°C. RoHS compliant and lead-free.
Frequency12MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi CD40174BCN technical specifications.
General
| Package/Case | PDIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 12MHz |
| High Level Output Current | -4.2mA |
| Input Capacitance | 10pF |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 6 |
| Number of Bits per Element | 6 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 6 |
| Number of Output Lines | 6 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 90ns |
| Quiescent Current | 4uA |
| RoHS Compliant | Yes |
| Series | 4000B |
| Technology | CMOS |
| Turn-On Delay Time | 400ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CD40174BCN Datasheet
Download the complete datasheet for Onsemi CD40174BCN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

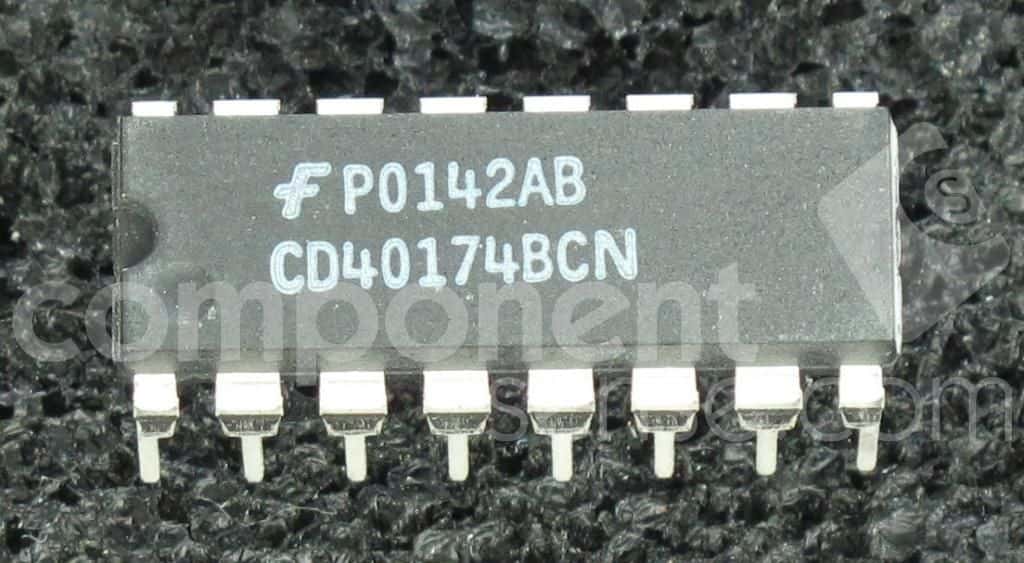

Product Images
