Bidirectional Transient Voltage Suppressor (TVS) array offering 6 channels of ESD protection. Features low 1.5pF capacitance per line, 6V minimum breakdown voltage, and 8.8V clamping voltage. Operates at 5.5V working voltage with a maximum reverse leakage current of 1uA. Packaged in a halogen-free, lead-free MSOP surface mount package with gold contact plating, suitable for 4000-piece tape and reel. Rated for 1A peak pulse current and 400mW peak pulse power, with an operating temperature range of -40°C to 85°C.
PackageMSOP
Capacitance1.5pF
Voltage Rating5.5V
Current Rating8uA
Quick Jump:
Technical Specifications
Onsemi CM1213-06MR technical specifications.
General
| Capacitance | 1.5pF |
| Package/Case | MSOP |
| Clamping Voltage | 8.8V |
| Contact Plating | Gold |
| Current Rating | 8uA |
| Depth | 3.1mm |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 3.1mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 3.1mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Leakage Current | 1uA |
| Number of Bidirectional Channels | 6 |
| Number of Channels | 6 |
| Number of Lines | 6 |
| Operating Supply Voltage | 6V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Peak Pulse Power | 400mW |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Termination | Solder |
| Width | 0.95mm |
| Working Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CM1213-06MR Datasheet
Download the complete datasheet for Onsemi CM1213-06MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

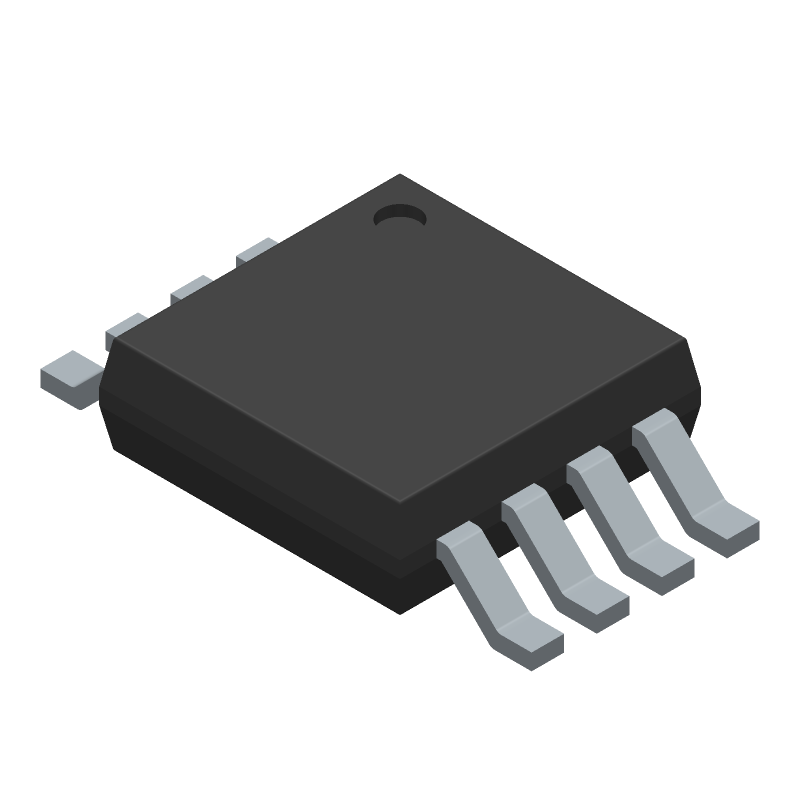

Product Images
