Low capacitance, unidirectional Transient Voltage Suppressor (TVS) array offering 4 channels of ESD protection. Features a 1.2pF capacitance per line, 6V minimum breakdown voltage, and 10V clamping voltage. Designed for 3.3V operating supply and reverse standoff voltage, with a 1A peak pulse current rating and 225mW maximum power dissipation. Housed in a compact SC package (2.25mm x 1.35mm) with SMD/SMT termination, this halogen-free and lead-free component is supplied in 3000-unit tape and reel packaging.
PackageSC
Capacitance1.2pF
Voltage Rating5.5V
Current Rating8uA
Quick Jump:
Technical Specifications
Onsemi CM1213A-04S7 technical specifications.
General
| Capacitance | 1.2pF |
| Package/Case | SC |
| Clamping Voltage | 10V |
| Current Rating | 8uA |
| Depth | 1.35mm |
| Direction | Unidirectional |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2.25mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 225mW |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CM1213A-04S7 Datasheet
Download the complete datasheet for Onsemi CM1213A-04S7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

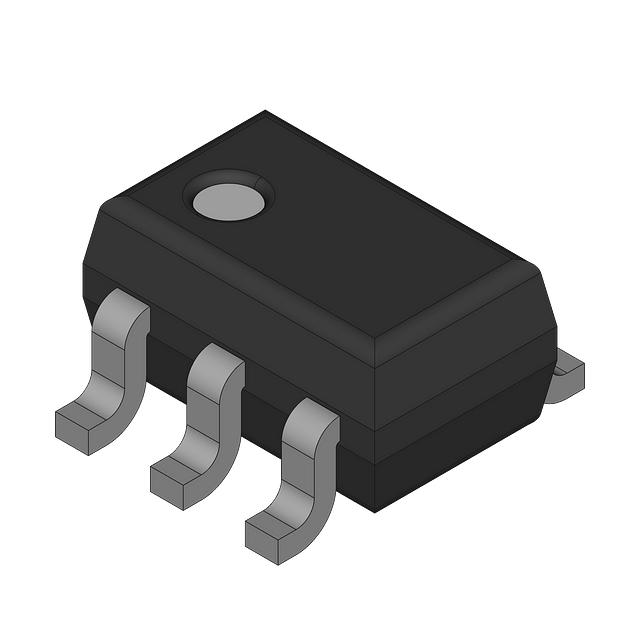

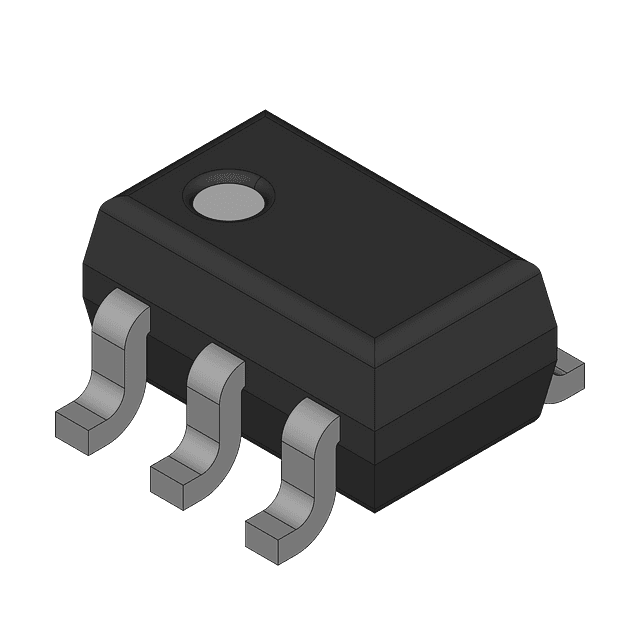

Product Images
