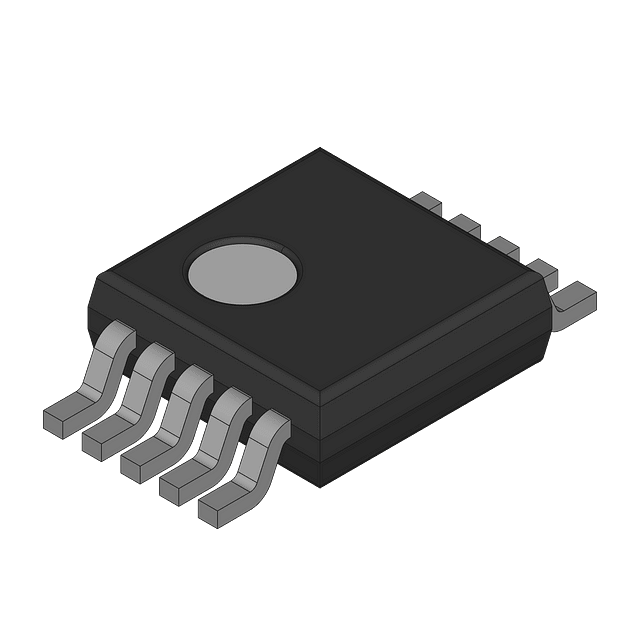

Unidirectional Transient Voltage Suppressor (TVS) array offering 4 channels for ESD protection. Features a low 0.8pF capacitance per line, a 5.5V working voltage, and a 6V minimum breakdown voltage. Clamping voltage is 10V with a 1µA leakage current. This 400mW device is housed in a 3x3mm MSOP package with gold contact plating and is supplied on a 4000-piece tape and reel. Operating temperature range is -40°C to +85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi CM1224-04MR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 0.8pF |
| Package/Case | MSOP |
| Clamping Voltage | 10V |
| Contact Plating | Gold |
| Depth | 3.1mm |
| Direction | Unidirectional |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 3.1mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Polarity | Bidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5.5V |
| RoHS | Compliant |
