This unidirectional transient voltage suppressor (TVS) array offers 4 channels of ESD protection with a low 1.2pF capacitance per channel. Featuring a 3.3V reverse standoff voltage and 9.8V clamping voltage, it provides robust protection for sensitive electronics. The component operates within a -40°C to 85°C temperature range and is designed for surface-mount applications with its WLCSP6 package. It is halogen-free, lead-free, and RoHS compliant, ensuring environmental responsibility.
Capacitance1.2pF
Current Rating8uA
Quick Jump:
Technical Specifications
Onsemi CM1230-04CP technical specifications.
General
| Capacitance | 1.2pF |
| Clamping Voltage | 9.8V |
| Contact Plating | Copper, Tin, Silver |
| Current Rating | 8uA |
| Depth | 0.96mm |
| Direction | Unidirectional |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 1.46mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CM1230-04CP Datasheet
Download the complete datasheet for Onsemi CM1230-04CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

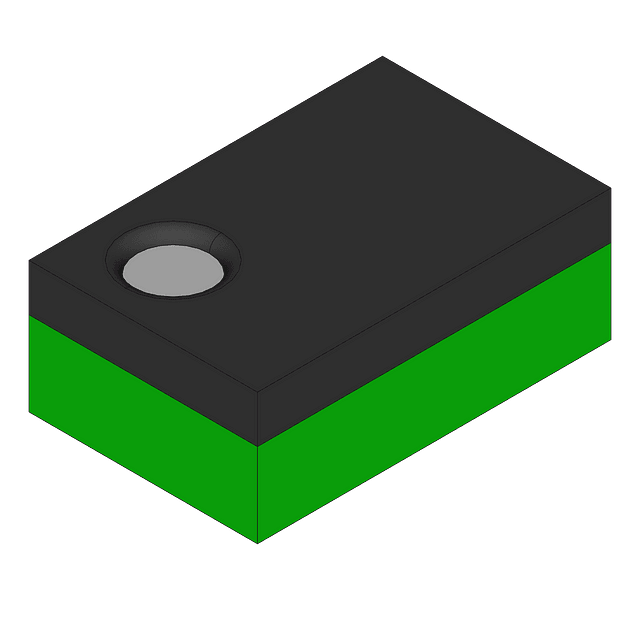

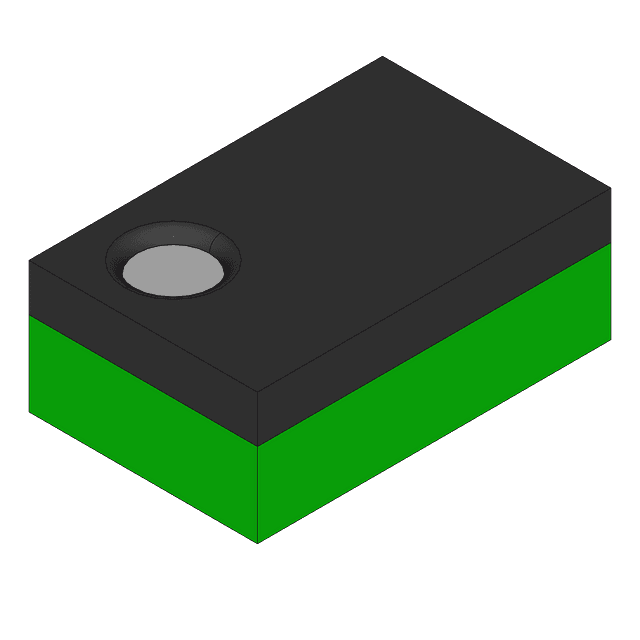

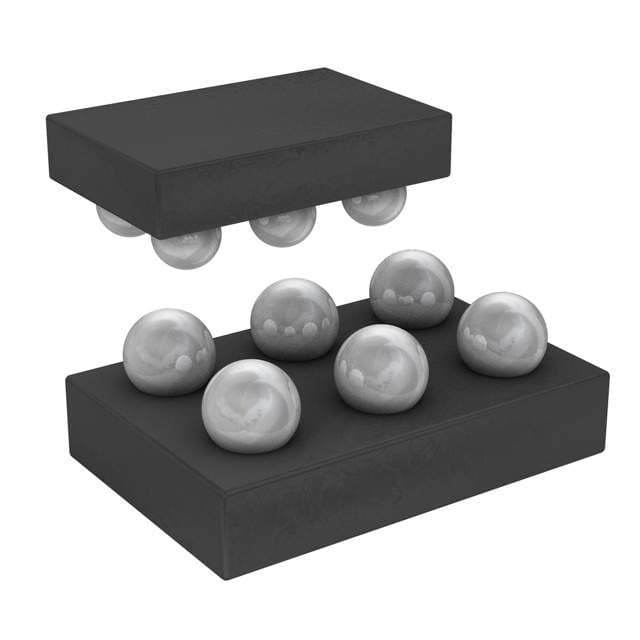

Product Images
