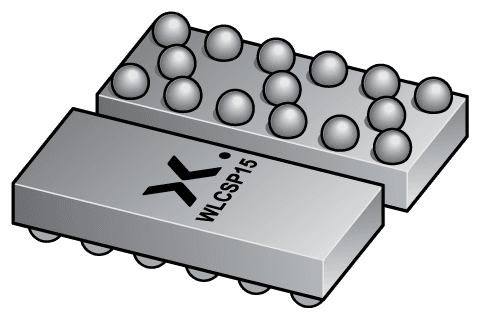

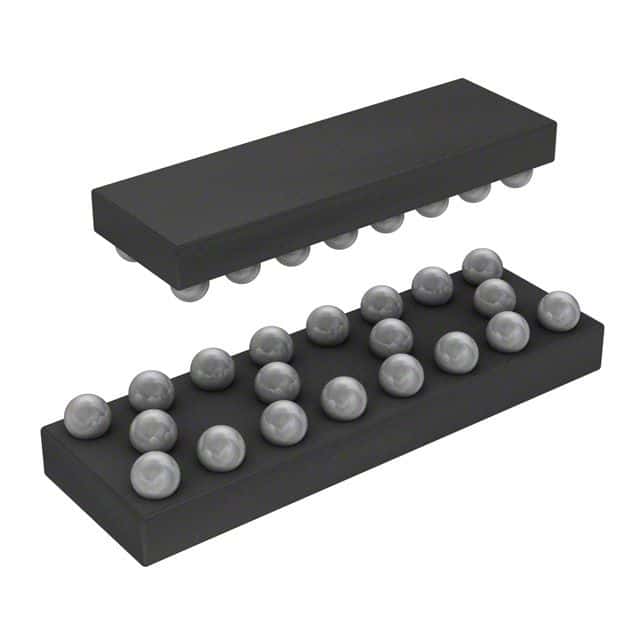

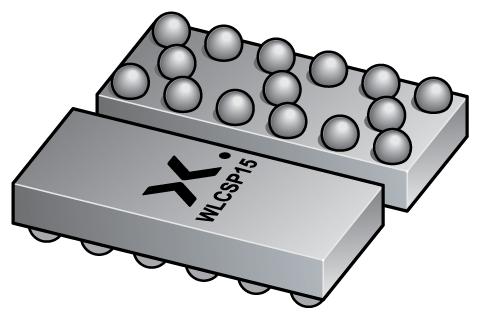

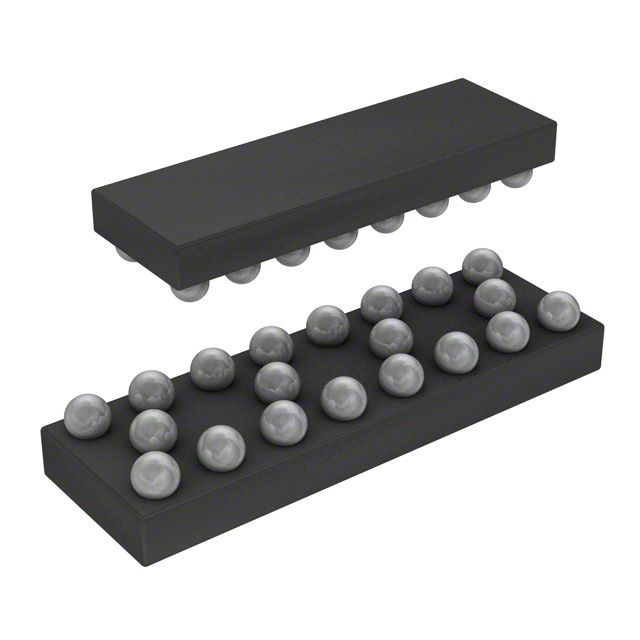

The CM1442-08CP is an 8-channel 20-element filter from Onsemi, featuring a 30dB attenuation value and 15pF capacitance. It is designed for surface mount applications and has a lead-free and halogen-free construction. The filter operates within a temperature range of -40°C to 85°C and is packaged in tape and reel quantities of 3500. It is RoHS compliant and has ESD protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi CM1442-08CP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Attenuation Value | 30dB |
| Capacitance | 15pF |
| Package/Case | SMD/SMT |
| Circuit Type | Filter |
| Depth | 1.05mm |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 0.644mm |
| Lead Free | Lead Free |
| Length | 3.16mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 8 |
| Number of Elements | 20 |
| Number of Lines | 8 |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 100R |
| RoHS Compliant | Yes |
| Termination | Flat |
| Width | 1.053mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi CM1442-08CP to view detailed technical specifications.
