8-line EMI/RFI filter with integrated ESD protection, featuring 22pF capacitance and 26nH inductance per line. Offers -30dB attenuation and 9V maximum clamping voltage, suitable for data line applications. Housed in a 3.3x1.35mm UDFN16 package with 0.4mm pitch, this component operates from -40°C to 85°C and handles up to 30mA current. Lead-free and halogen-free, it is supplied on a 3000-piece tape and reel.
PackageDFN
Current30mA
Capacitance22pF
Inductance26nH
Quick Jump:
Technical Specifications
Onsemi CM1693-08DE technical specifications.
General
Attenuation Value
-30dB
Capacitance
22pF
Package/Case
DFN
Circuit Type
Filter
Clamping Voltage-Max
9V
Contact Plating
Tin, Matte
Current
30mA
Depth
1.45mm
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.5mm
Inductance
26nH
Lead Free
Lead Free
Length
3.3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Number of Channels
8
Number of Elements
16
Number of Lines
8
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Flat
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Onsemi CM1693-08DE Datasheet
Download the complete datasheet for Onsemi CM1693-08DE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

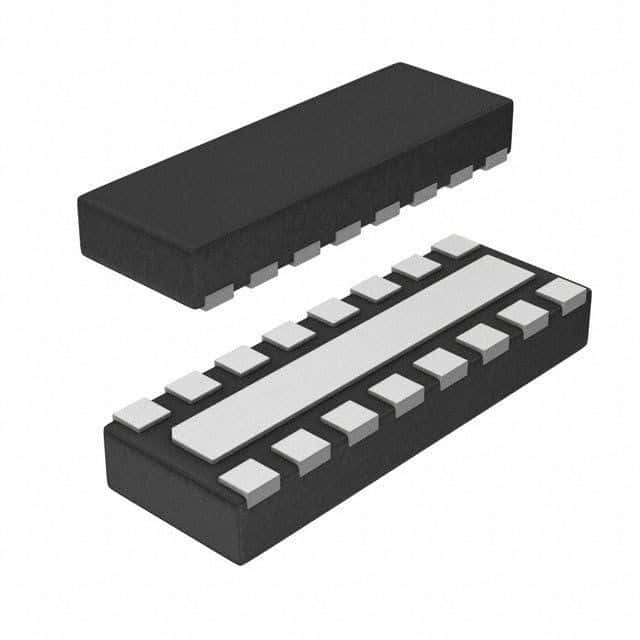

Product Images
